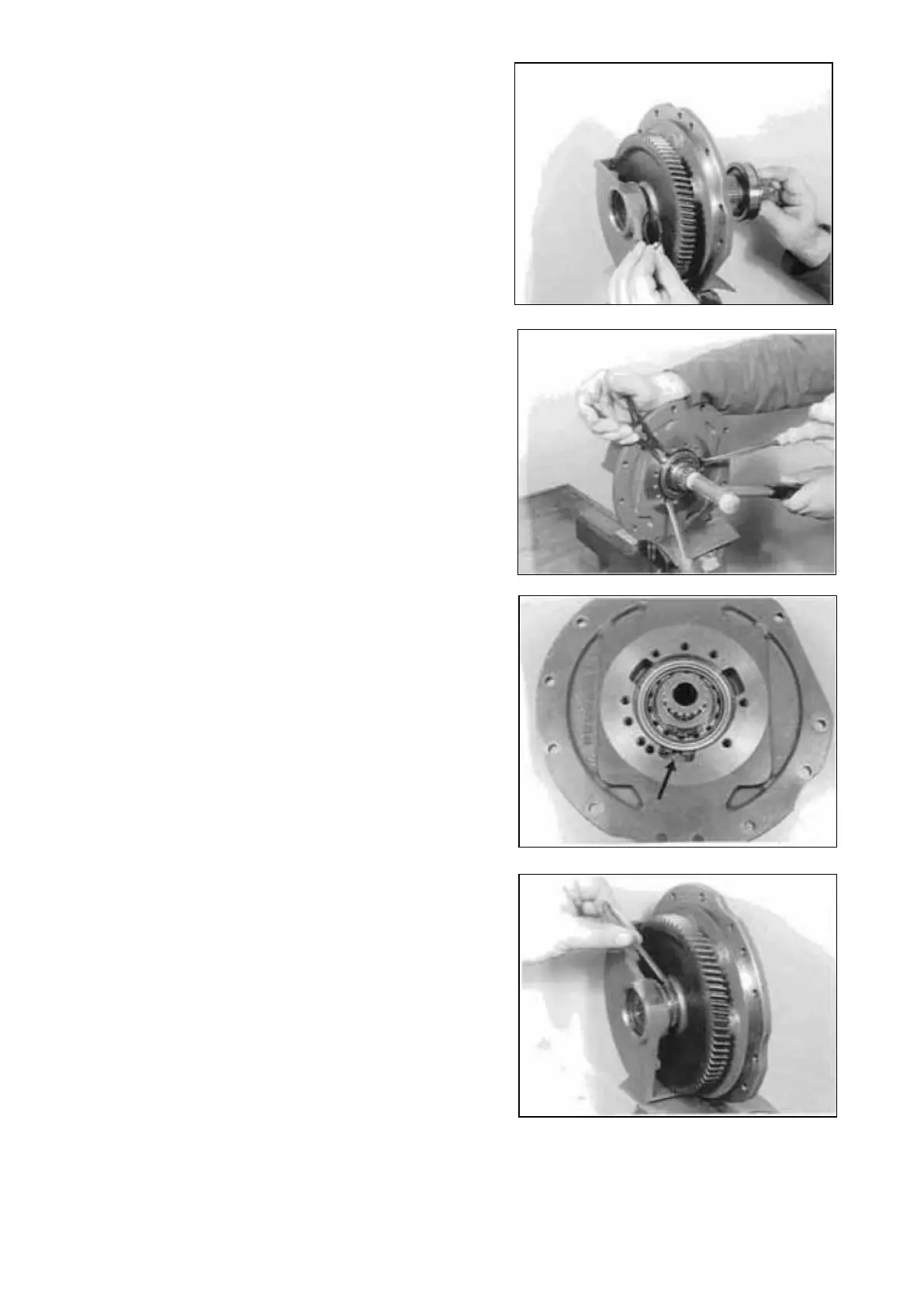

Position spur gear and thread up drive dog until the
snap ring is located.
Expand the two snap rings, align them centrically
and tap drive dog into the housing until the first snap
ring engages in the annular groove of the roller
bearing.
The illustration on the left shows the installation
position of the snap rings, see Arrow!
Locate snap ring finally, thus fixing the spur gear.
SPC000007 Transmission and Torque Converter
Page 160
