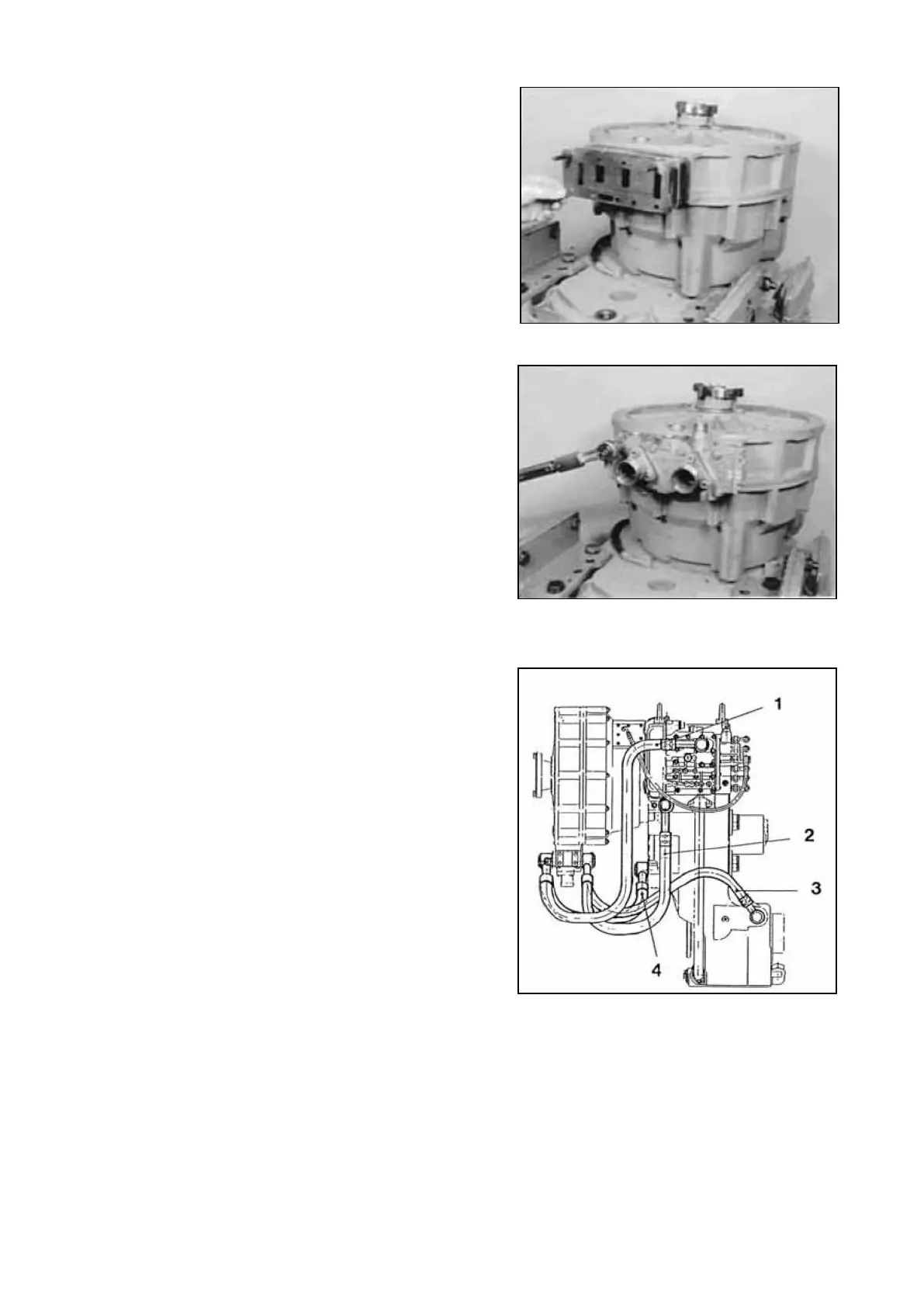

Install two adjusting screws.
Assemble first gasket, intermediate plate and
second gasket.
( S ) Adjusting screws (M8) 5870 204 011
Place retarder valve against shoulder and fasten it
by means of hex. head screws.
Torque limit (M8/8.8) 23 Nm
4.2.3 Install delivery lines
Install delivery lines according to the Draft on the
right.
1 = To the Retarder
2 = Converter exit
3 = Return to Sump
4 = To the Lubrication
NOTE :
Install new O-Rings.
SPC000007 Transmission and Torque Converter
Page 178
