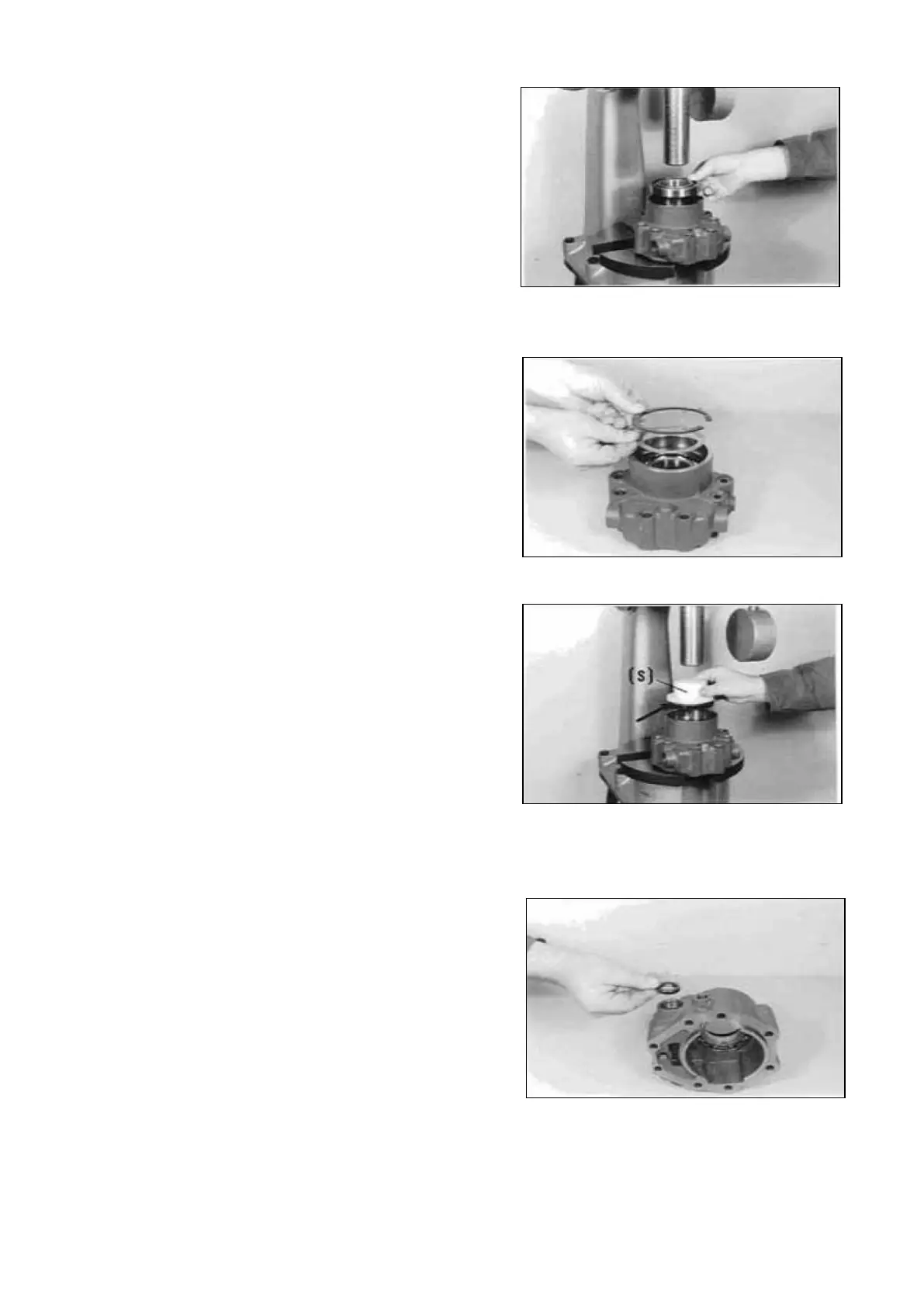

5.2 REASSEMBLY
Press ball bearing in until contact is obtained.
Adjust ball bearing free of play by means of disk and
circlip.
Install shaft seal (Arrow) with the sealing lip facing
the oil chamber.
NOTE :
The exact installation position is obtained by
application of the prescribed driver ( S ) !
If the outer diameter of the shaft seal is rubberized,
wet the sealing surface with spirit !
If not, use sealing compound (Curilt T) !
Grease sealing lip !
( S ) Driver 5870 048 057
Insert shaft seal until contact is obtained.
NOTE :
Wet rubberized outer diameter with spirit !
Grease sealing lip !
( S ) Driver 5870 048 031
Transmission and Torque Converter SPC000007
Page 183
