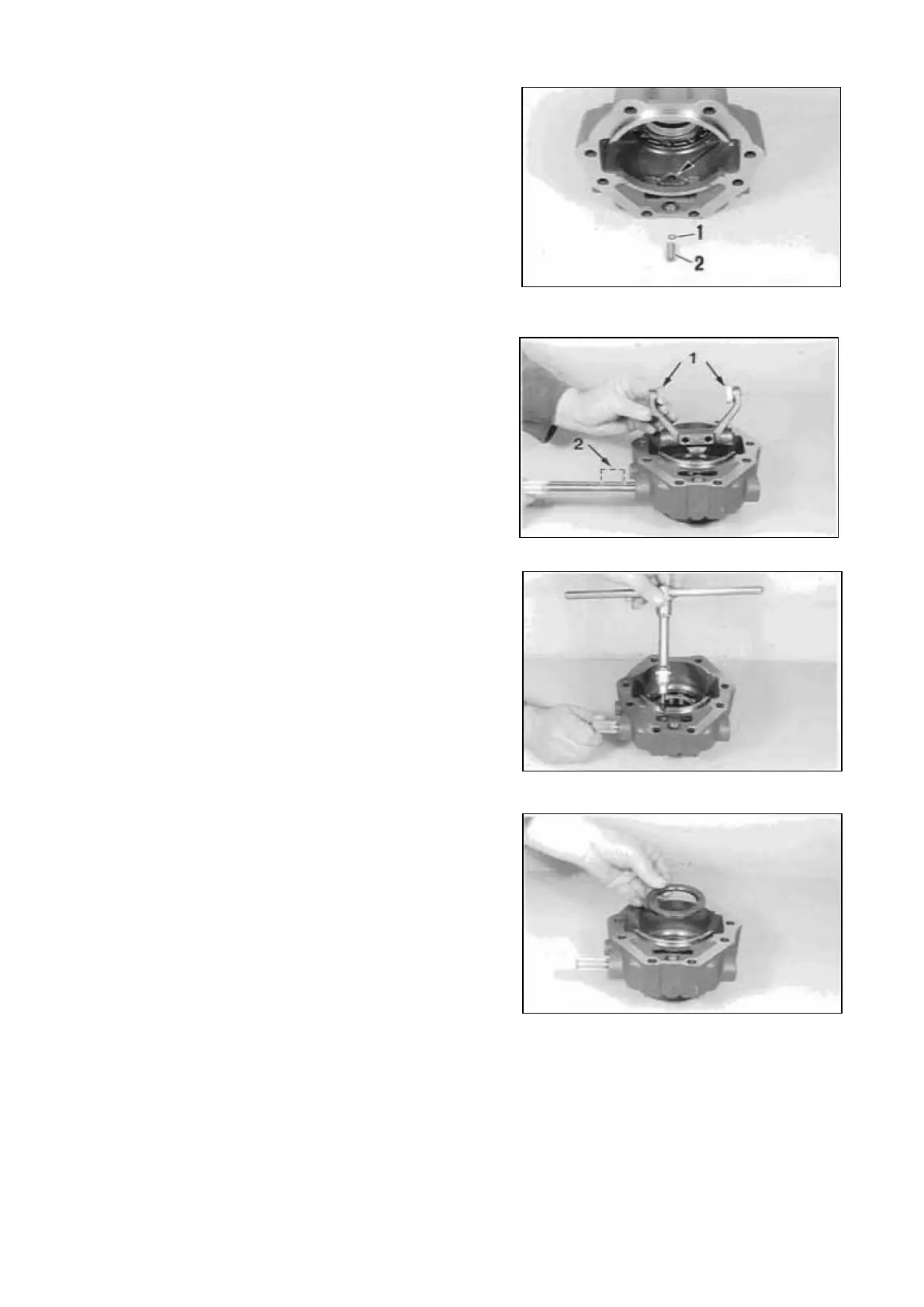

Insert shim (1) and straight pin (2) in the housing
bore (Arrow).
NOTE :
The overlapping of the locating bore to the
countersinking-shift fork is determined by means of
shim(s), e.g. s = 0,50 mm (empirical value) I
However, a later check (Figure 27) is absolutely
essential !
Install sliding blocks (Arrow I), position shift fork and
fix by means of gearshift shaft.
NOTE :
Pay attention to the installation position of the
sliding blocks, see Figure !
Realize the overlapping of the gearshift shaft
countersinkings (Arrow 2, Figure 20) and the tapped
holes of the shift fork, and install the two set screws.
NOTE :
Secure set screws with Loctite (Type-No.242) !
Insert disk.
SPC000007 Transmission and Torque Converter
Page 184
