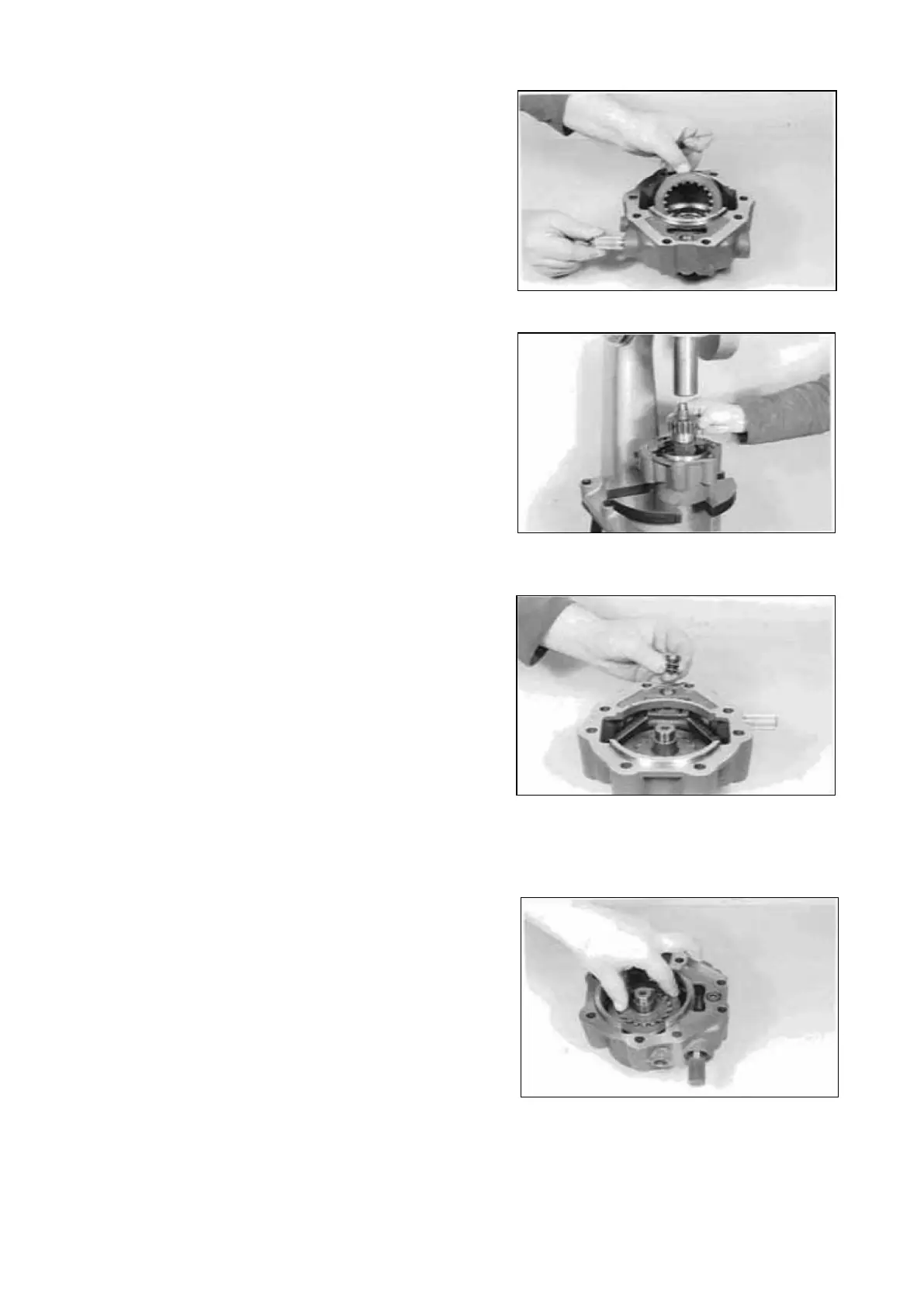

Thread up sliding collar.
Thread up output shaft and press it against shoulder.
Assemble shim(s), e.g. s = 2,00 mm and mount
socket head screws.
Torque limit (M10/8.8, DIN 7984)
32Nm
NOTE :
By means of shim, e.g. s = 2,00 mm (empirical
value), the sliding collar will be adjusted free of
pressure (Figure 26) !
Secure socket head screw with Loctite (Type- No.
242) !
Cheek the pressureless condition of the sliding collar !
NOTE :
In a pressureless condition, a small tilting play on
the sliding collar can be noted !
If necessary, correct by means of shim (Figure25 ) !
Transmission and Torque Converter SPC000007
Page 185
