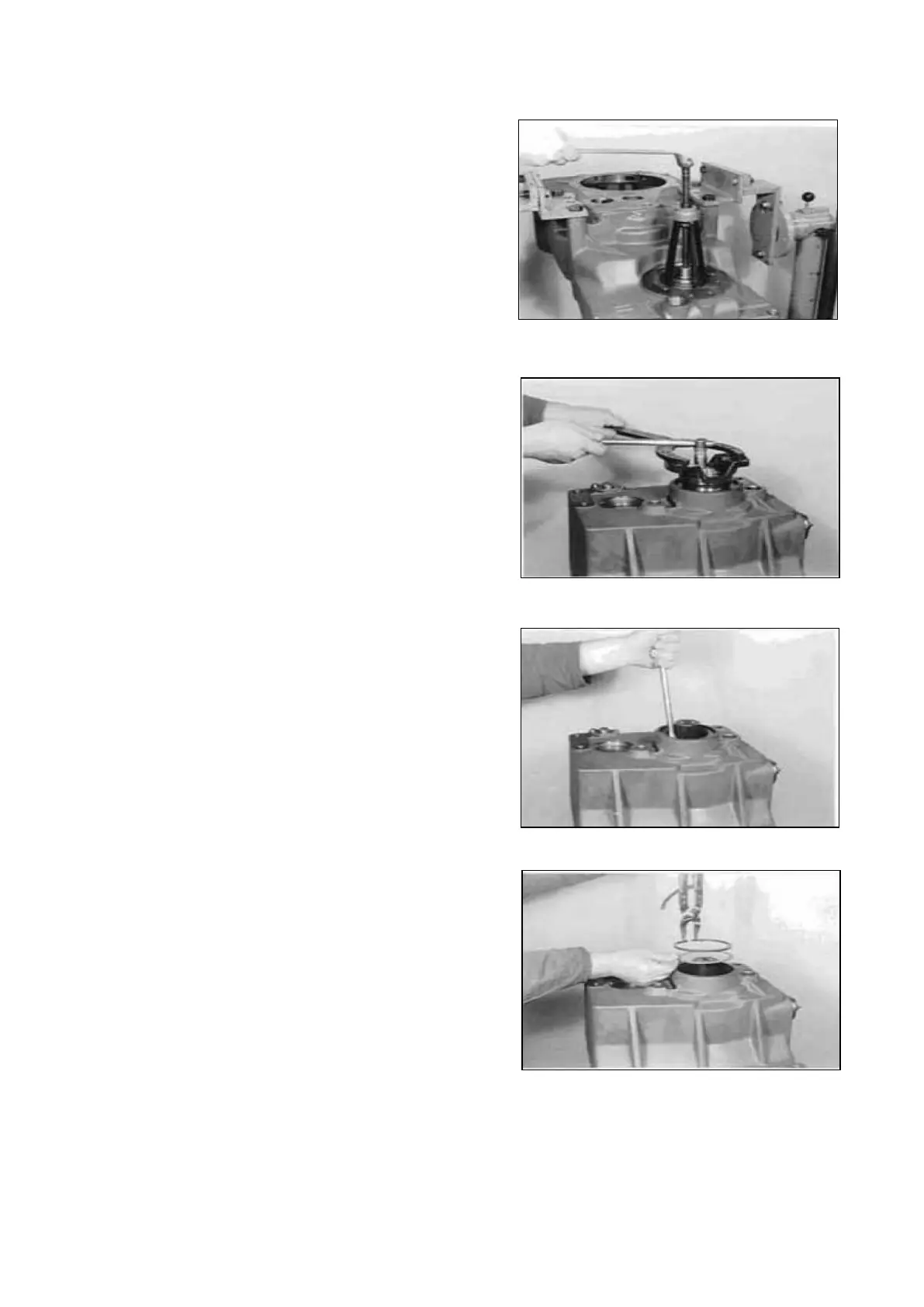

6.2 DIFFERENTIAL
6.2.1 Remove and dismantle differential
Pull roller bearing by means of puller device out of
the housing bore.
( S ) Internal puller 5870 300 010
Tilt gear case 180°.
Loosen hex. head screws and pull output flange
from the shaft
(s) Clamping yoke 5870 240 025
Pry shaft seal out of the housing bore.
( S ) Pry bar 5870 345 071
Remove circlip and shim.
( S ) Clamping pliers 5870 900 021
SPC000007 Transmission and Torque Converter
Page 198
