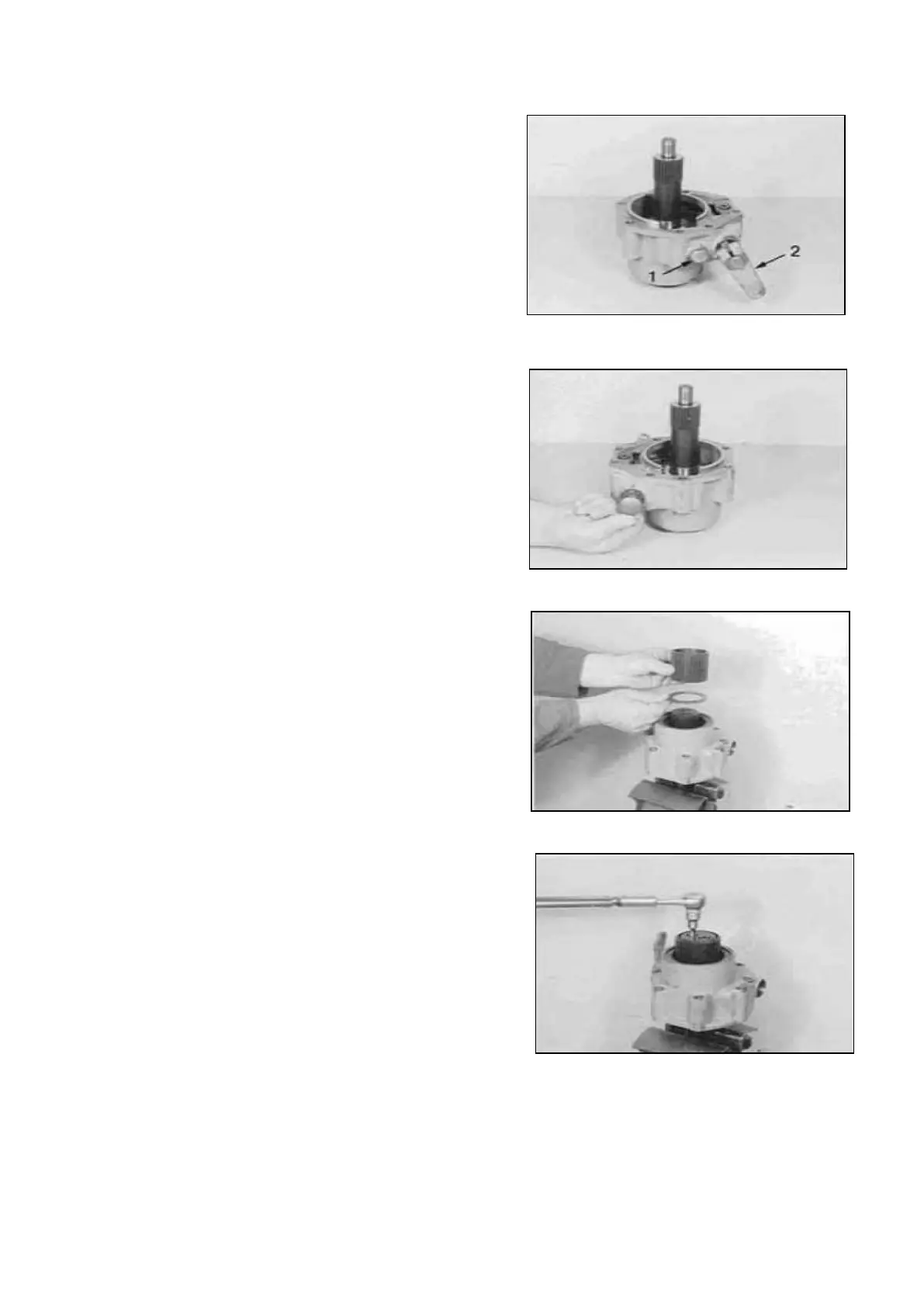

Assemble new sealing ring and install locking screw
(Arrow I).
Assemble gearshift lever (Arrow 2) flush mounted
and fix it by means of hex. Head screw.
NOTE :
Radial installation position of the gearshift lever
according to the Indications of the
Manufacturer of the vehicle, resp. according to the
markings !
Insert closing cover (Arrow) until contact is obtained
and fix it by slight central tapping.
NOTE ;
Wet sealing surfaces with Loctite (Type-No. 270) !
Insert disk and assemble sleeve.
NOTE :
Pay attention to the installation position of the
sleeve !
Fix sleeve by means of disk and socket head
screws.
Torque limit (M10/8.8 DIN 6912) 32 Nm
NOTE :
Secure socket head screws with Loctite (Type- No.
270) !
Transmission and Torque Converter SPC000007
Page 197
