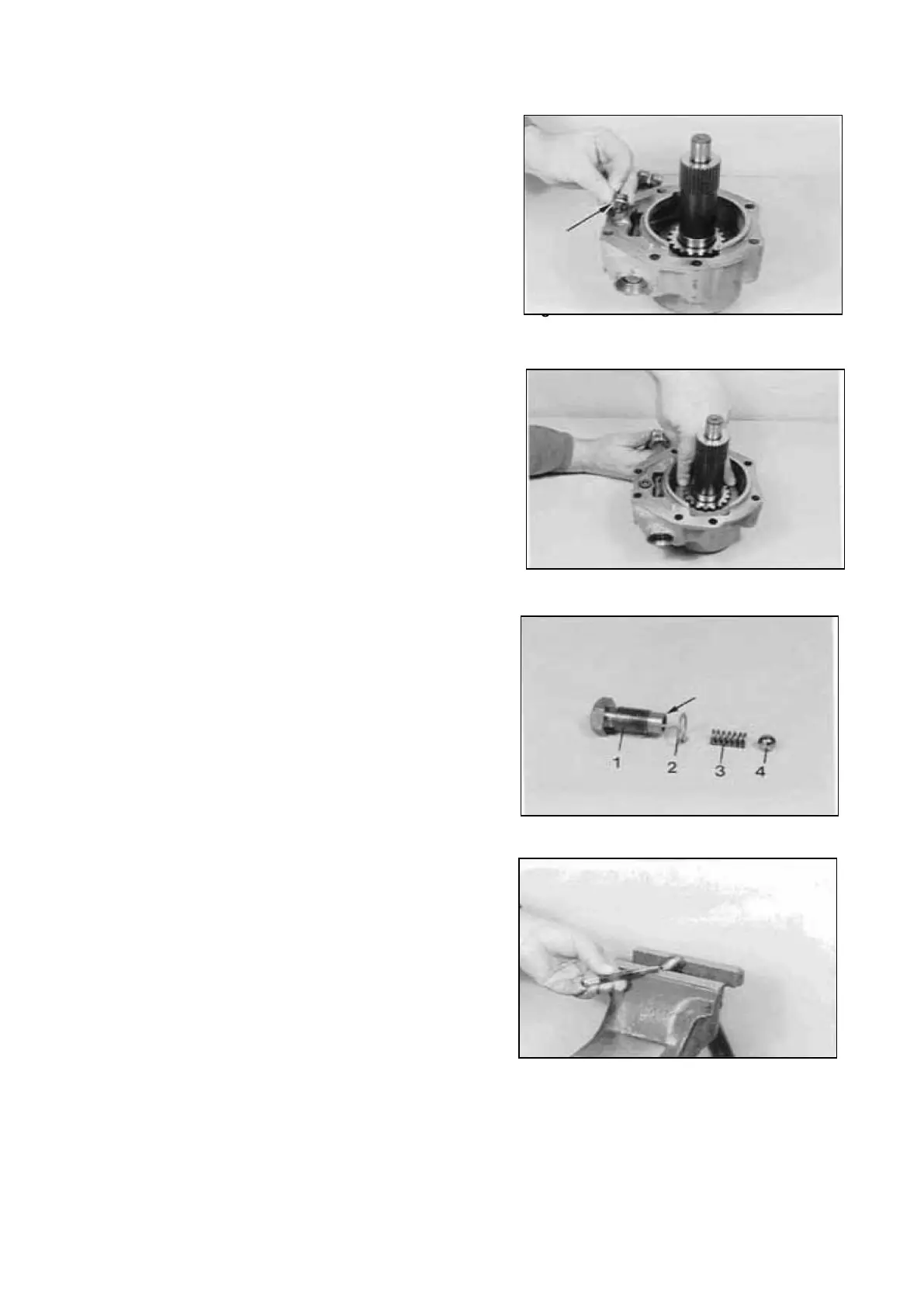

Assemble shim(s) e.g. s = 2.00 mm and install
socket head screw.
Torque limit (Ml0/8.8 DIN 7984) 32 Nm
NOTE :
The sliding collar is adjusted free of pressure by the
shim s = 2,00 mm (empirical value) (Figure 27) !
Secure socket head screw with Loctite (Type-No.
242) !
Place sliding collar by means of gearshift lever into
the lower stop position and check the pressureless
condition.
NOTE ;
In case of a correct adjustment, a slight tilting play
on the sliding collar can be noted !
If necessary, correct it by means of shim (Arrow/
Figure 26) !
The Illustration on the right shows the components
of the locking screw.
1 = Spring bush
2 = Sealing ring
3 = Compression spring
4 = Ball
Insert compression spring and ball in the spring
bush and preload them in a vise.
Fix the ball by indents (3 x 120°) on the end face of
the spring bush (see Arrow Figure 28).
SPC000007 Transmission and Torque Converter
Page 196
