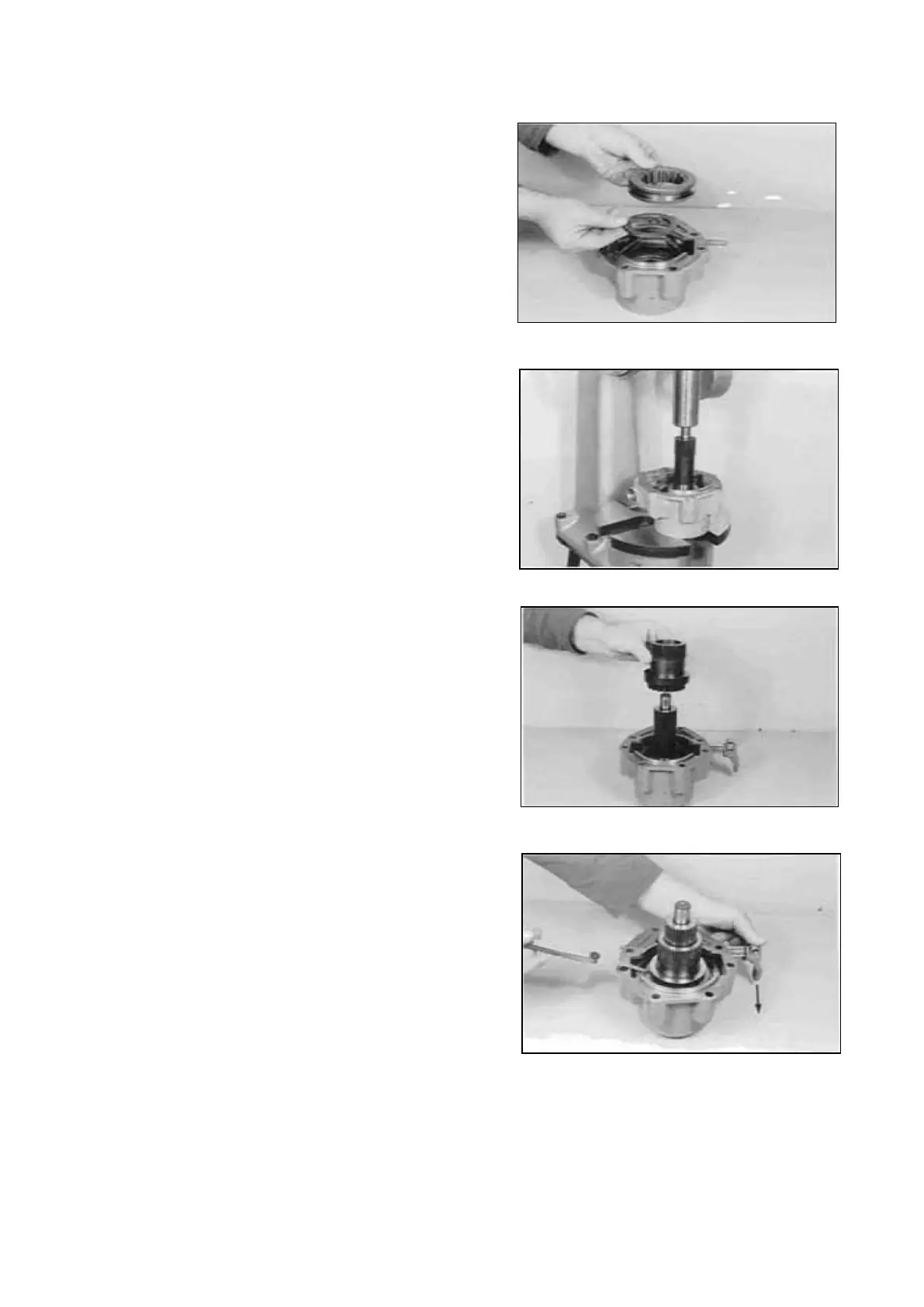

Insert disk and assemble sliding collar.
Introduce output shaft and press it against shoulder
until contact is obtained.
Assemble the hollow shaft in order to check the
shifting travel.
Place sliding collar by means of gearshift lever into
the upper stop position (direction of Arrow) and
determine the play between sliding collar and plane
surface-hollow shaft.
NOTE ;
If the required end play = 0.1 ... 0.2 mm is not
obtained, correct with corresponding shims (see
Figure 19) !
Now, remove hollow shaft again.
Transmission and Torque Converter SPC000007
Page 195
