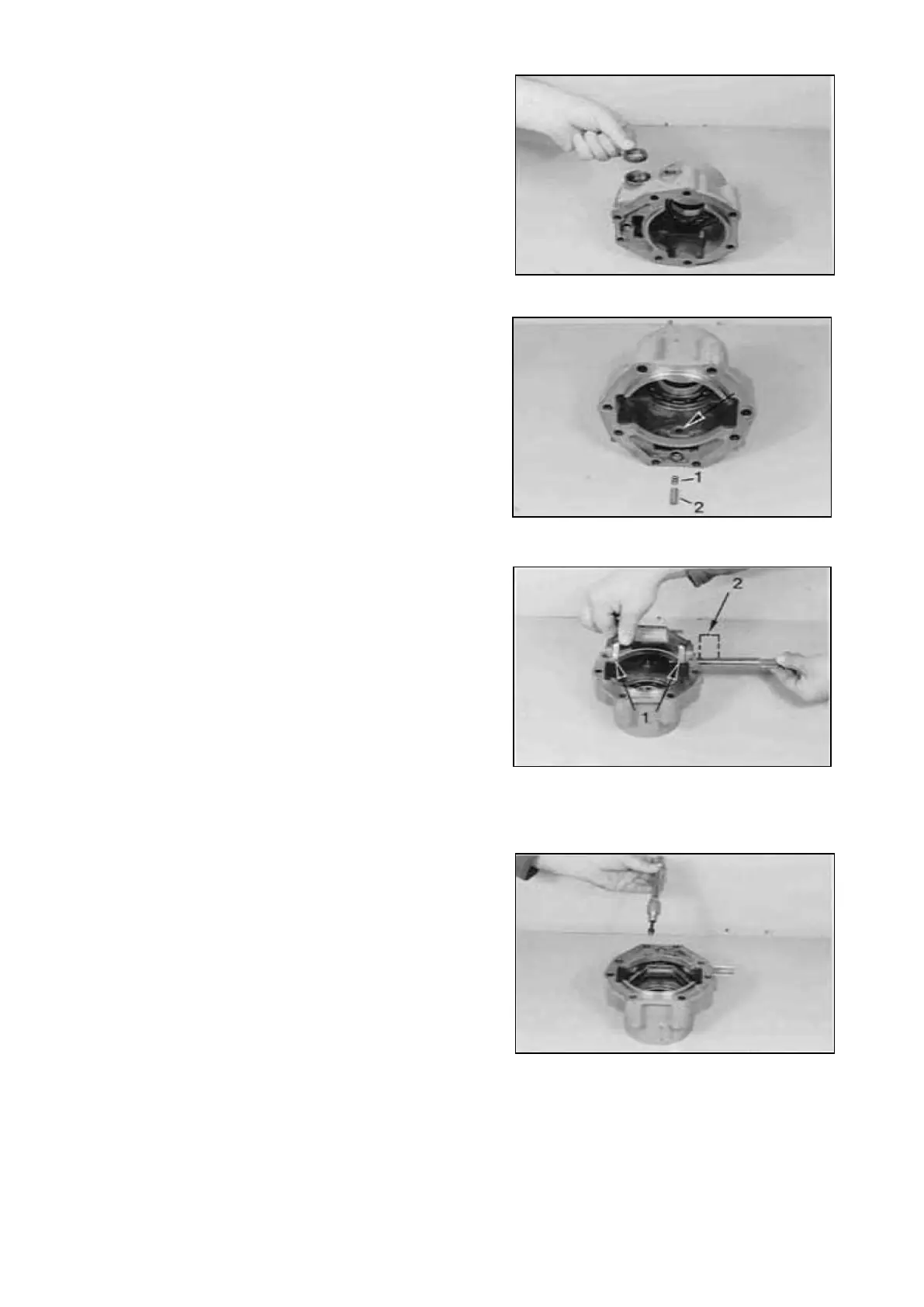

Insert shaft seal until contact is obtained.
NOTE :
Wet rubberized outer diameter with spirit !
Grease sealing lip !
( S ) Driver 5870 048 031
Insert shims (1) and straight pin (2) in the housing
bore (Arrow).
NOTE :
The shifting travel is adjusted with the shims, total
thickness s = 0,6 mm (empirical value) !
However, a later check is absolutely essential
(see Figure 25) !
Install sliding blocks (Arrows 1), position shift fork
and fix it by means of gearshift shaft.
NOTE :
Pay attention to the installation position of the
sliding blocks - chamfered end face is showing to
the rear !
Realize the overlapaping of the gearshift shaft
countersinkings (Arrow, Figure 20), and the tapped
holes of the shift fork, and install the two set screws.
NOTE ;
Secure set screws with Loctite (Typc-No.242)!
SPC000007 Transmission and Torque Converter
Page 194
