6.2.2Pre-assemble and install
differential

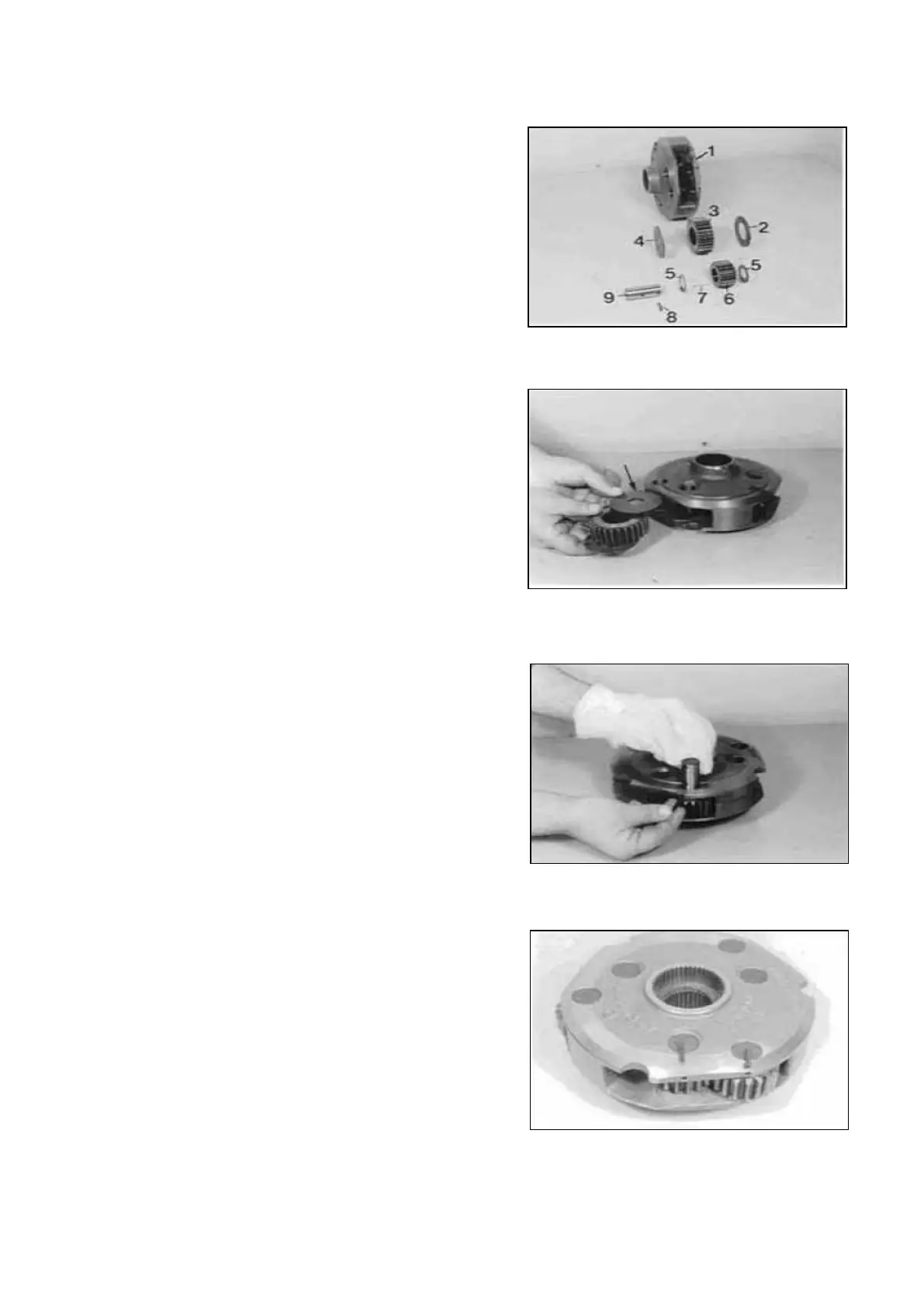

The Illustration on the left shows the com-ponents of
the planetary carrier.
1 = Planetary carrier
2 = Thrust washer
3 = Sun gear
4 = Thrust washer (small inner diameter)
5 = Thrust washer
6 =Planetary gear
7 = Needle rollers (replace in sets only)
8 = Roll pin
9 = Planetary shafts
Install sun gear and thrust washers (Figure 56).
NOTE:
Pay attention to the installation position of the thrust
washer 4 (smaller inner diameter) see Arrow!
Insert needle rollers 7 with grease in the planetary
gear.
Position planetary gear as well as thrust washers
and align them centrically.
Undercool planetary shafts, introduce and fix them
by means of roll pin.
Install the remaining planetary gears accordingly.
NOTE:
Pay attention to the installation position of the
planetary shafts (lubricating hole)!
Figure 58 shows the installation position of the roll
pins!
