Doosan DISD SD 310 - Page 439

7. POWER TAKE-OFF
CONTROLLABLE UNDER LOAD
7.1 DISASSEMBLY

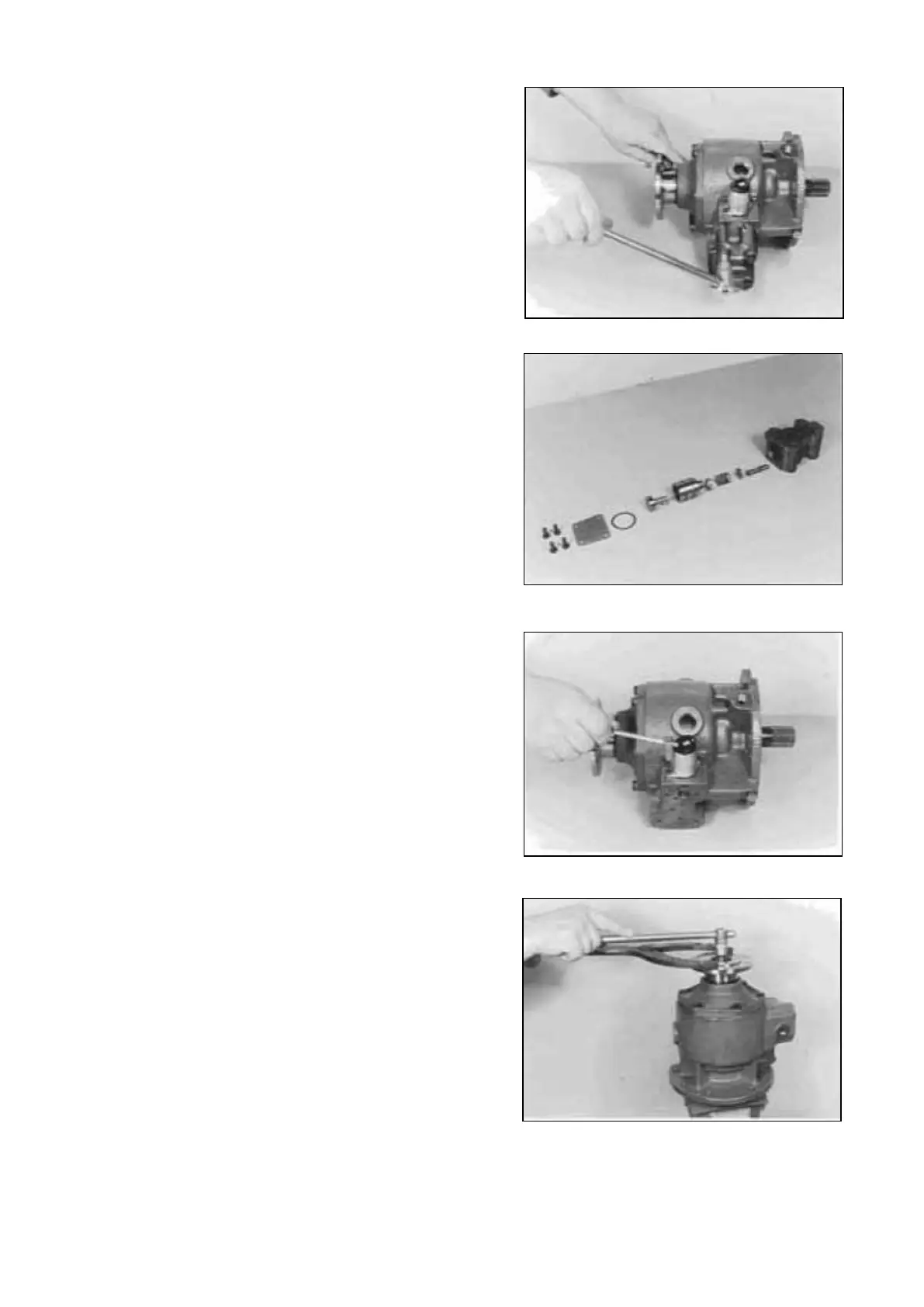

Loosen hex. head screws and remove shift-control
housing
Remove components according to the Illustration on
the right.
Loosen socket head screws and remove solenoid
valve.
Loosen hex. head screws and pull the output flange
from the output shaft, using puller.
( S ) Clamping yoke 5870 240 025
Transmission and Torque Converter SPC000007
Page 211
Figure 1
Figure 2
Figure 3
Figure 4
