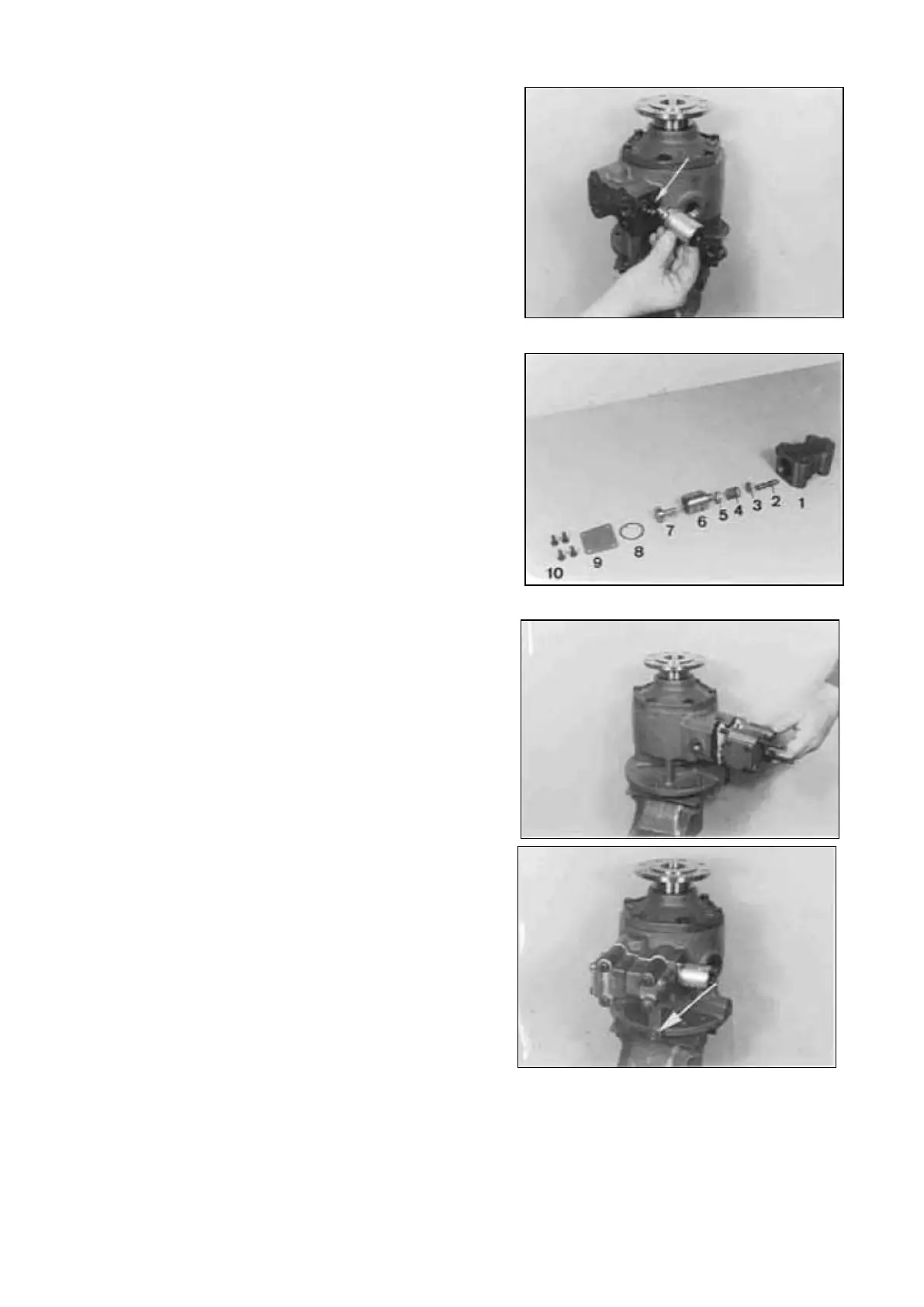

Make O-Ring (26 x 3 mm, see Arrow) adhere with
grease in the countersinking Of the housing.
Introduce solenoid valve until contact is obtained
and fasten it by means of socket head screws.
Torque limit (M 5/8.8) 5,5 Nm
NOTE ;
Employ new O-Rings for the solenoid valve !
Install components according to the Illustration on
the left.
1= Housing
2 = Spool
3= Disk
4 = Spring
5 = Disk
6 = Sleeve
7 = Spool
8 = O-Ring
9 = Cover
10 = Hex. head screw
Torque limit (M6/8.8) 9,5 Nm
NOTE:
Pay attention to the installation position of the spool
(2) !
Install disk (5) with the chamfering facing the sleeve !
Install two adjusting screws and assemble flat
gasket as well as shift-control housing.
Now, fasten shift-control housing by means of hex.
head screws (use flat washers).
Torque limit (M8/8.8) 23 Nm
( S ) Adjusting screws (M8) 5870 204 011
Install screw plug (Arrow).
NOTE :
Install new sealing ring !
SPC000007 Transmission and Torque Converter
Page 222
