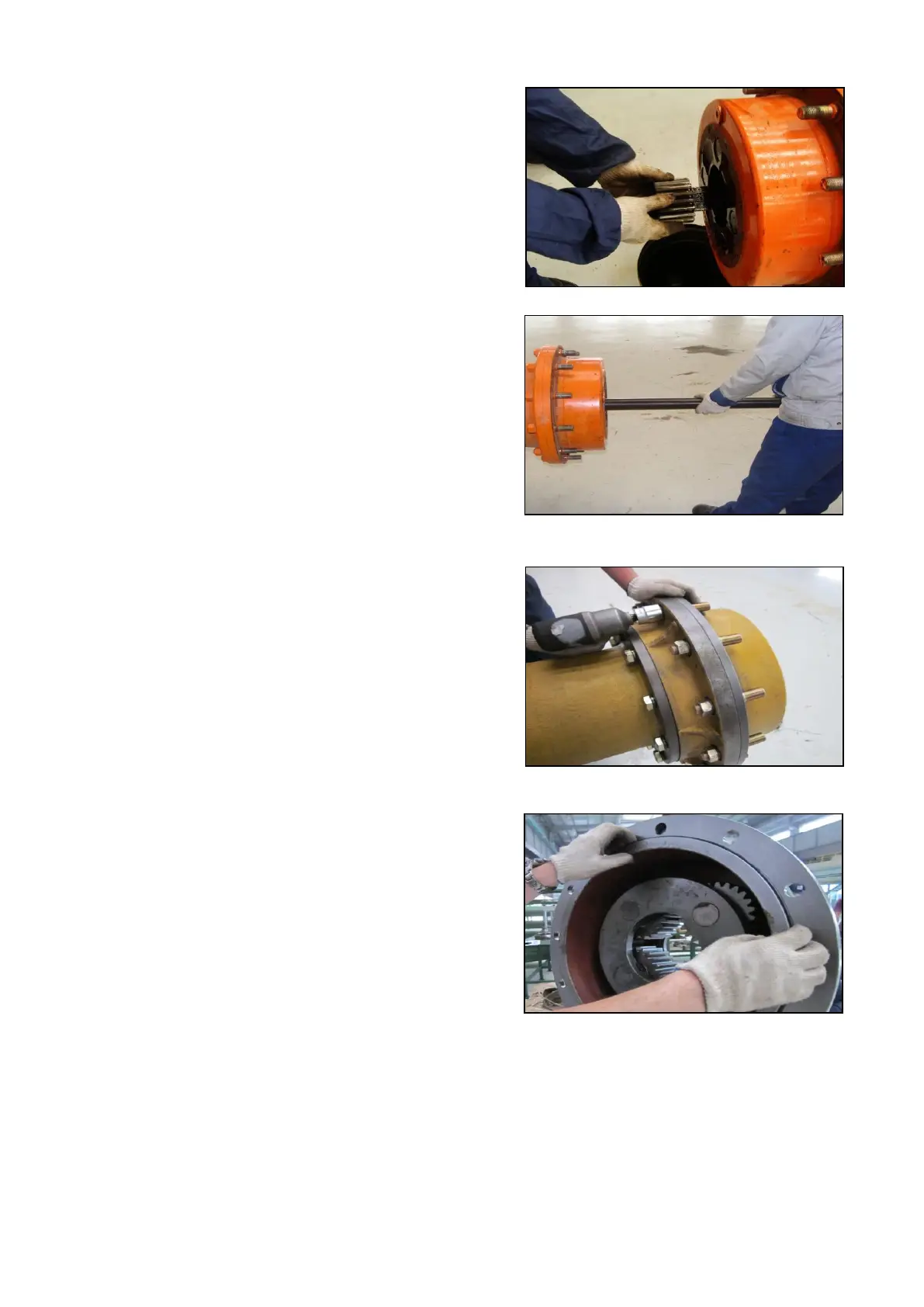

9. Dismantle sun gear
Dismantle semiaxis from sun gear.
10. Dismantle semiaxis
Take semiaxis from shell slightly.
11. Hub reducer
First loosen rim bolts with relative tools, then loosen
rim from planet carrier with jackscrew and dismantle
planet carrier assembly.
Note: Please slowly loosen planet carrier to avoid safety
hazard resulted from dropping of planet carrier assembly.
12. O Ring
Dismantle O ring from planet carrier.
Front Axle SPC000009
Page 15
