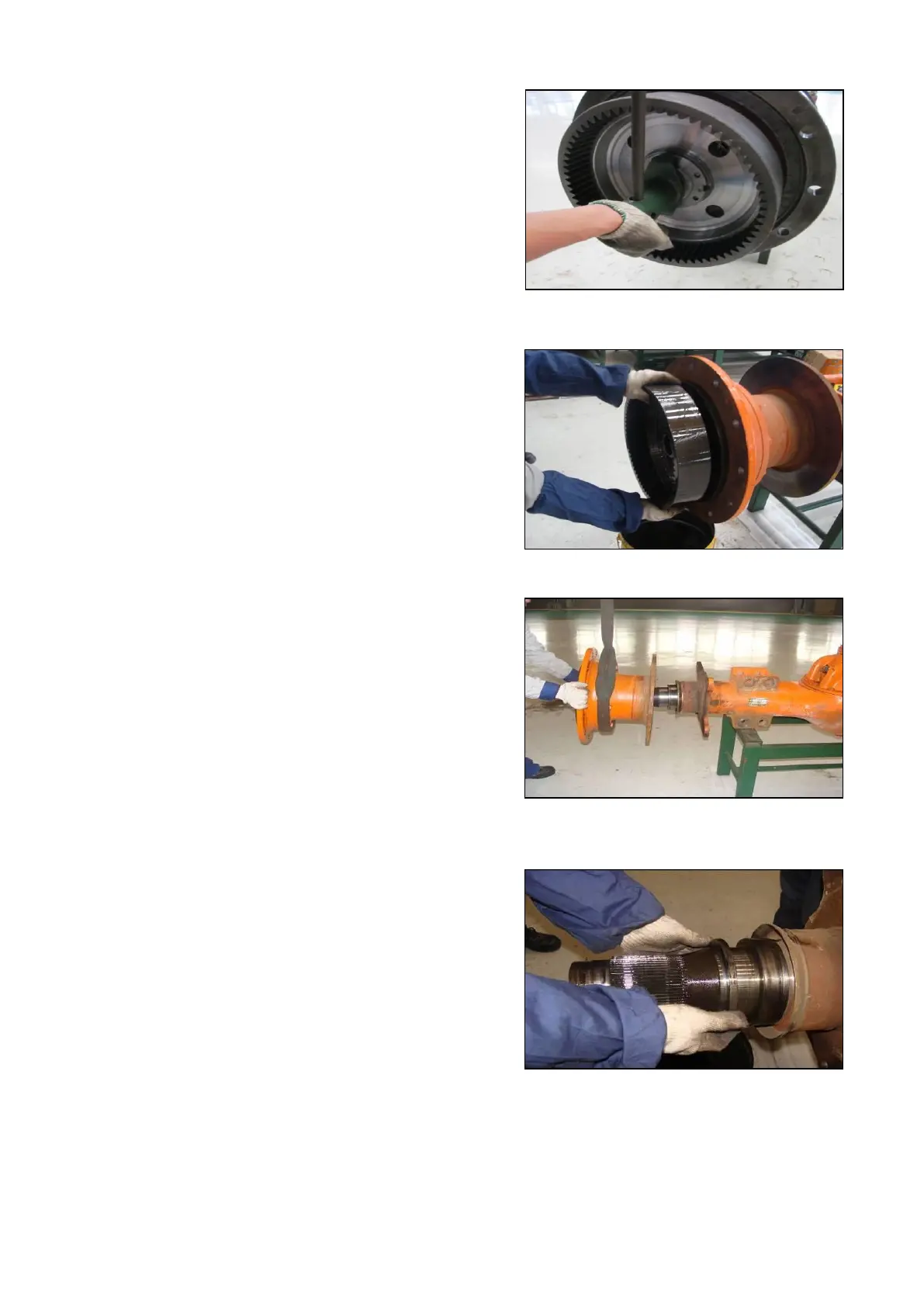

13. Dismantle round bolts
Pry up wire of bolt, loosen the clamp bolt of round
nuts ,then dismantle round nuts.
14. Dismantle internal gear
Take internal gear out by slightly rocking.
15. Dismantle wheel hub assembly
Take wheel hub assembly from supporting axle.
Note: During hanging and dismantling process,
please keep axis of wheel hub assembly is in line
with axis of hub reduction supporting axle to avoid
scratching oil surface and internal spare parts
during dismantling process.
16. Dismantle spacer bush
Take out spacer bush.
RemarkDismantle all parts at the other side with
the same method.
SPC000009 Front Axle
Page 16
