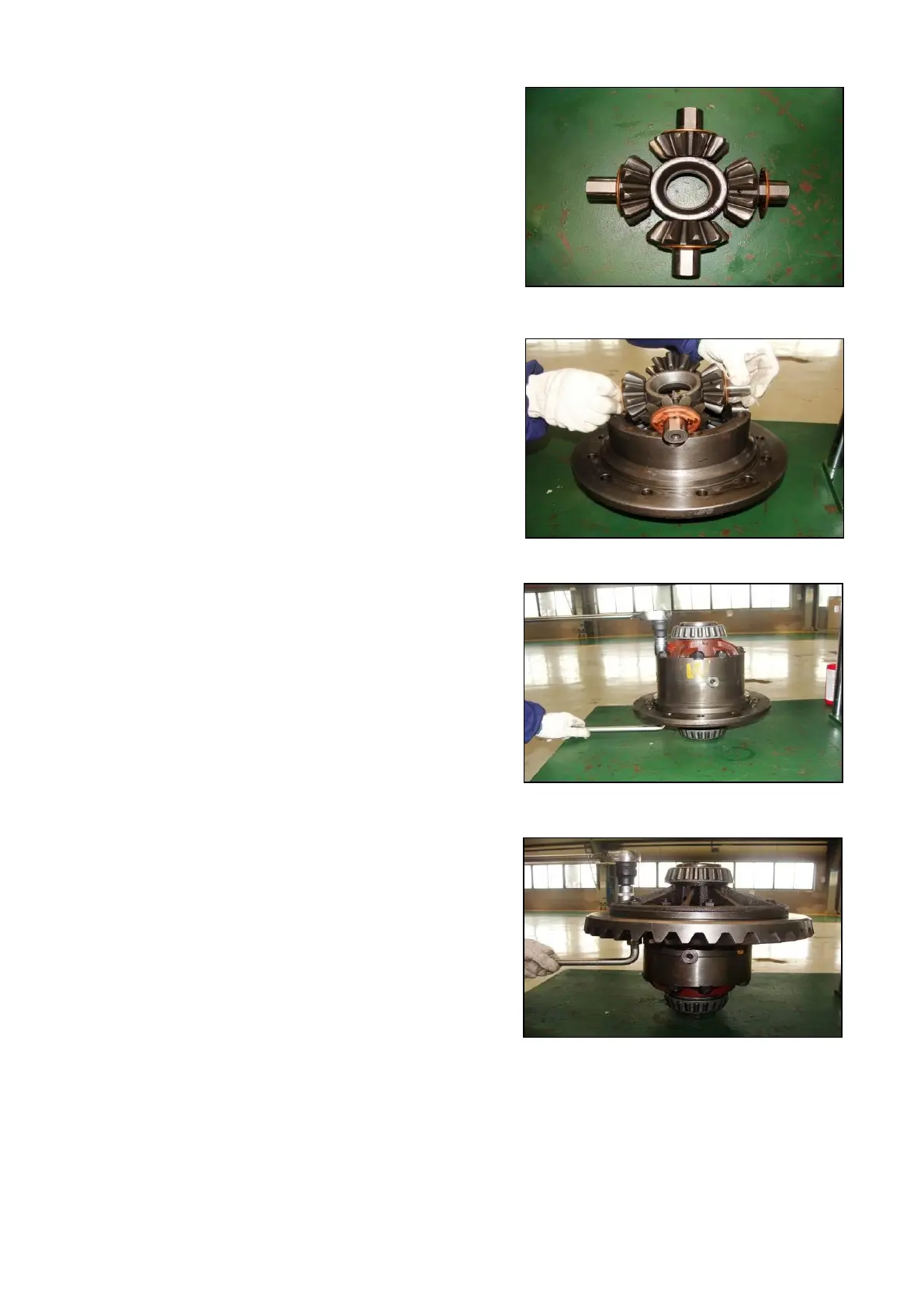

6. Assemble joint cross assembly
Assemble bevel gear (internal of small terminal) and
bevel gear gasket on four axles of joint cross.
Note: Lubricate with grease when assembling bevel
gear and bevel gear gasket
7. Differential mechanism shell
Assemble joint cross in right shell of differential
mechanism to make bevel gear and semiaxis gear
mesh, turn over left shell assembly of differential
mechanism to assemble right shell assembly of
differential mechanism, join right shell and left shells
of differential mechanism with bolts and fasten with
gaskets and nuts.
Note: Nuts fastening torque: 180 ~ 210Nm
Note: Guarantee assembling mark of right shell and
left shell of differential mechanism align.
Note: Coat proper Letai 262 thread fastening
sealant at the thread bottom within 12mm length.
Note: After assembling, semiaxis gear and taper
gear can be rotated manually without blocking.
8. Install driven spiral bevel gear
Aim at assembling mark, fasten driven spiral bevel gear
(Rotate to the left for rear axle, rotate to the right for
front axle) with bolts, gaskets and nuts, and fasten screws.
Note: Nuts fastening torque 280±25Nm
Note: Coat proper Letai 262 thread fastening
sealant at the thread bottom within 12mm length.
Note: Judging method of left and right spiral: face to
positive side of gear, right rotation refers to the
spiral gear rotates to large terminal clockwise; on
the contrary, left rotation refers to the spiral gear
rotates to large terminal anticlockwise.
Front Axle SPC000009
Page 39
