Doosan DISD SD 310 - Page 516

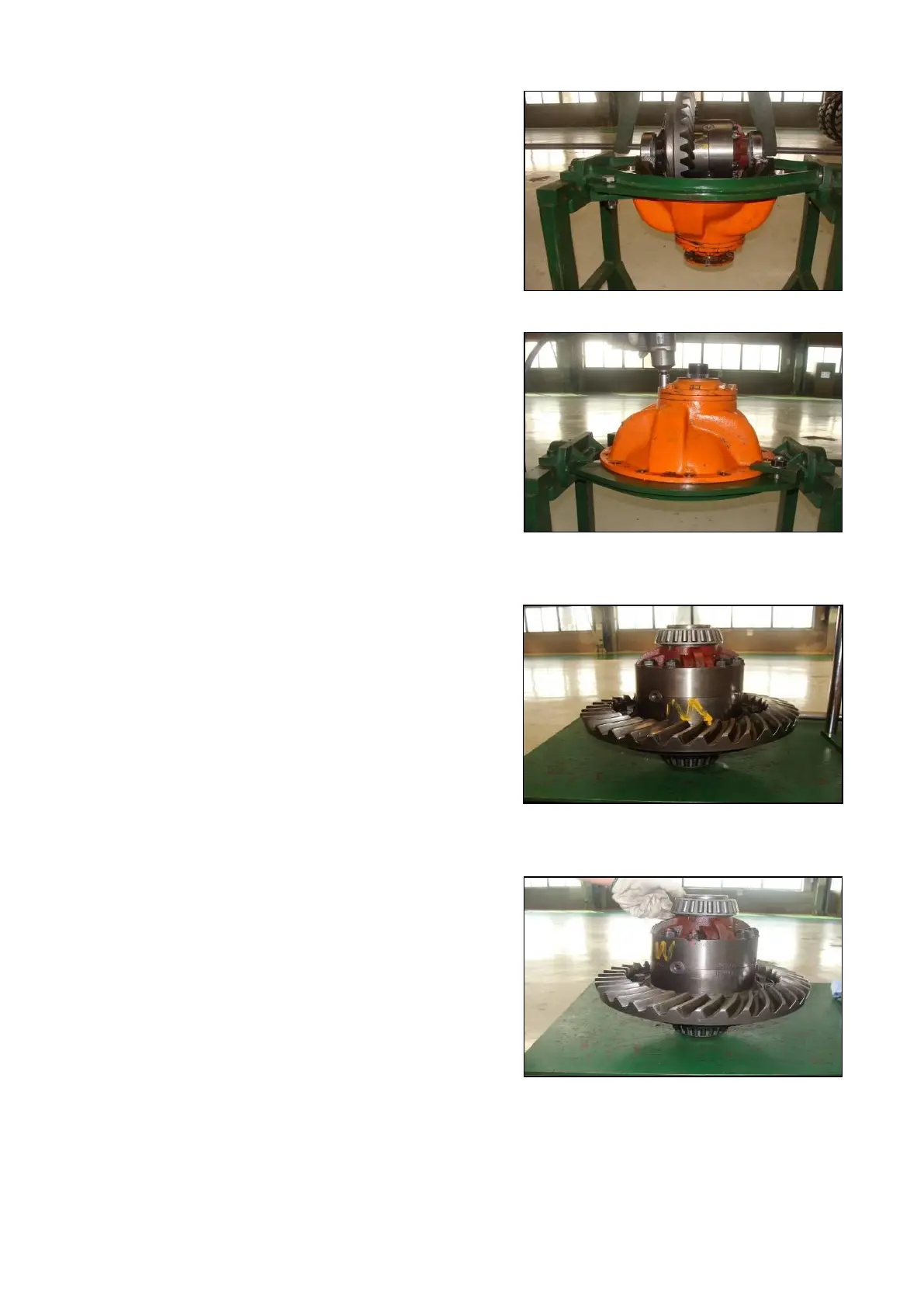

11. Hang out differential mechanism assembly.
Note: Keep balance when hanging out to avoid safety
hazard.
12. Separate active spiral bevel gear assembly and
bracket with jackscrew.
Dismantle differential assembly
1. Put differential assembly vertically on working
platform, and guarantee it is stable.
2. Dismantle bearing on left and right shell of
differential mechanism.
SPC000010 Rear Axle
Page 22
Figure 43
Figure 44
Figure 45
Figure 46
