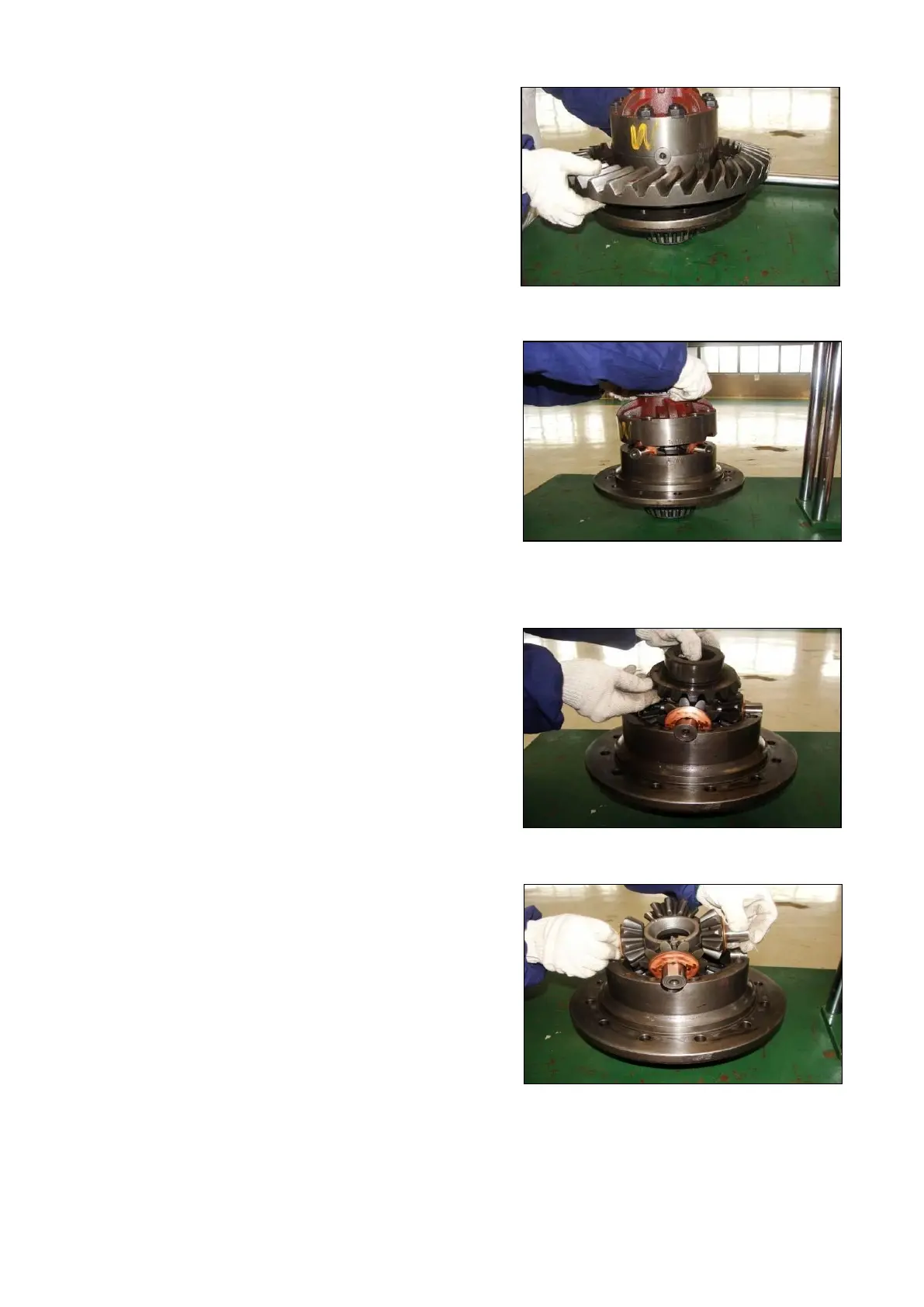

3. Loosen connection nuts between driven spiral
bevel gear and right shell of differential mechanism,
dismantle driven spiral bevel gear.
Note: Check or mark sign before dismantling driven
spiral bevel gear so that it can be assembled to original
position.
4. Loosen connection screws of left and right shell, separate
shell of differential mechanism.
Note: Before taking out driven spiral bevel gear, please
checkor mark assembling sign first so that it can be placed
back to the original position.
5. Take out semiaxis gear gasket and semiaxis gear.
6. Take out joint cross and differential gear together,
take out differential gear gasket and gear from joint
cross.
