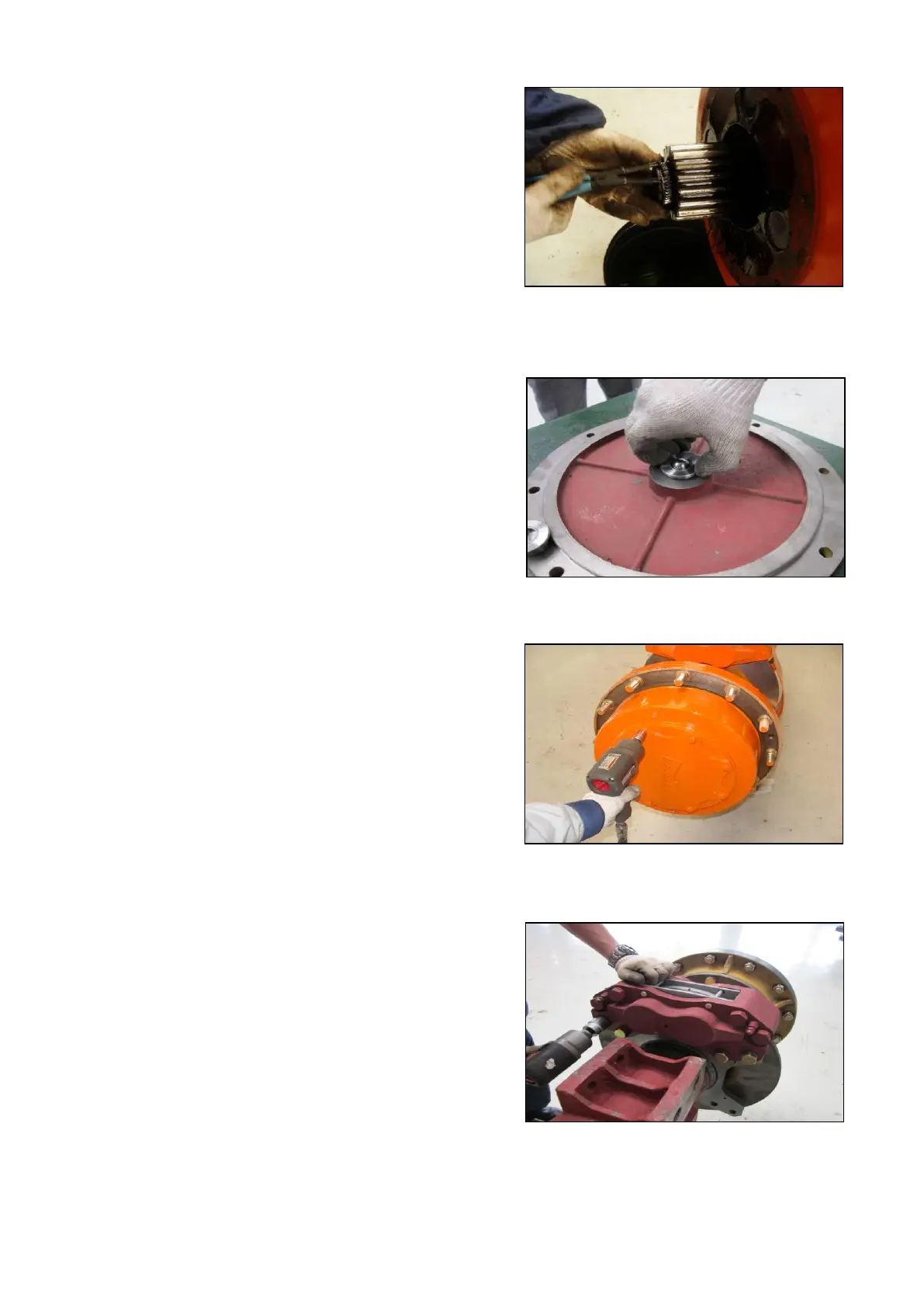

10. Assemble baffle ring
Assemble baffle ring with baffle ring used for axle.
Note: It must be clamped firmly when using baffle
ring pincer to avoid safety hazard when it is popping
out during assembling process.
11. Assemble locating block
Stake steel ball on locating block, it can rotate flexibly
after staking steel ball.
12. Assemble end cap
Assemble end cap
Note: Fasten all screws according to symmetrical
and crossing principle.
Fastening torque
110 ~ 130Nm,
Letai Silicone Rubber 598 planar sealant
Letai 262 thread fastening sealant
13. Assemble brake caliper assembly
Assemble disc brake on brake caliper supporting, fix
with bolts and gaskets.
Note: Fastening torque
550±40Nm
Coat Letai 262 thread fastening sealant at 20mm
length at thread end during assembling.
Rear Axle SPC000010
Page 29
