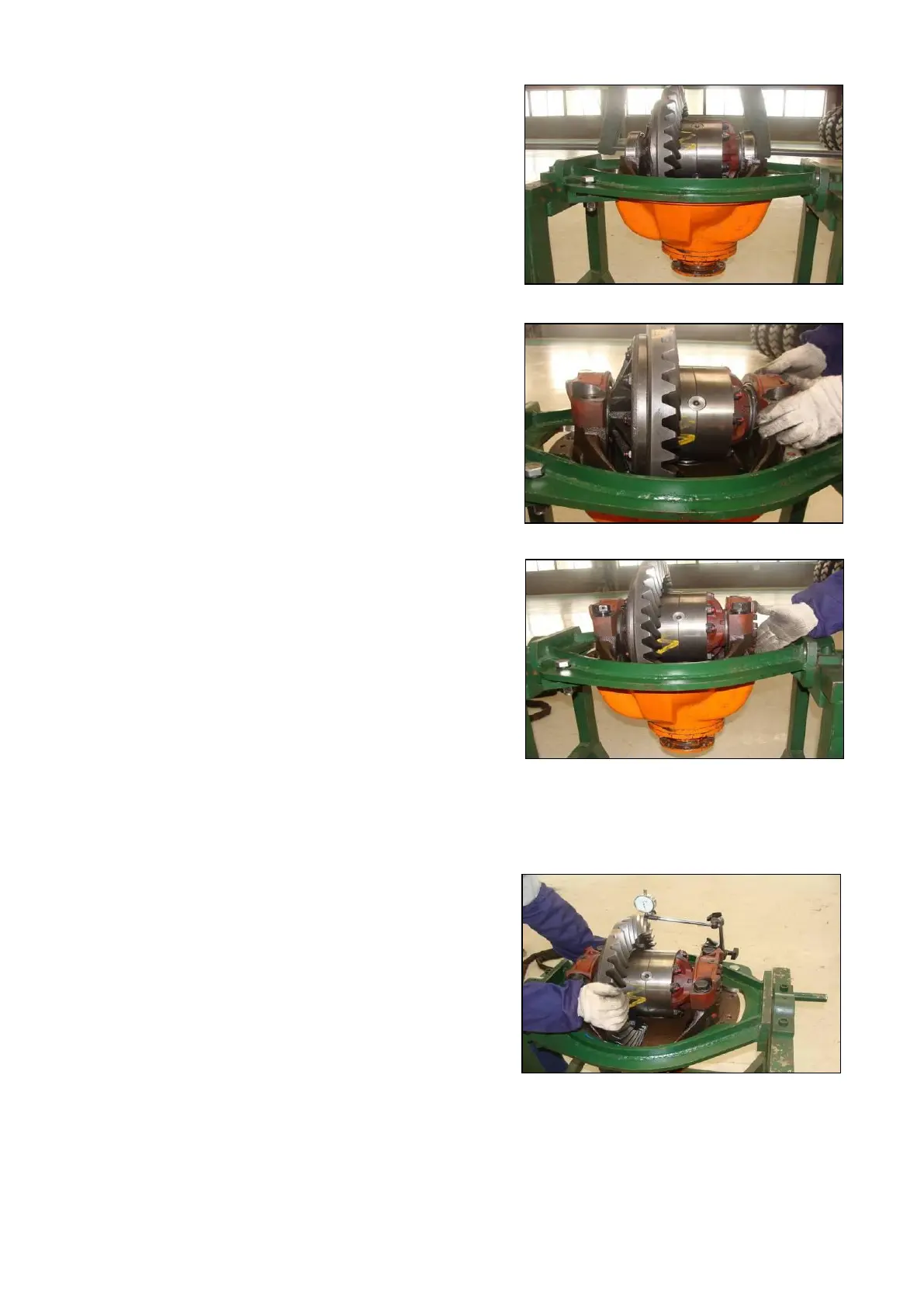

9. Install differential assembly
Turnover tracket, install differential assembly in bracket.
10. Install bearing seat with gaskets and bolts (bolts
shall be a little bit tight). Install adjustable nuts.
Note: Two bearing seats cannot be exchanged.
Note: Coat proper thread sealant on the length
of 15
25mm on thread end surface of bolts.
11. Adjust spiral bevel gear
Adjustment of spiral bevel gear mesh condition
refers to adjustment of mesh zone and back lash,
when adjusting back lash of spiral bevel gear pair,
dial gauge can be used to touch the gear surface of
large side edge of driven spiral bevel gear, then
rotate driven spiral bevel gear to measure back lash
directly, the clearance shall be 0.2 0.35mm.
Adjusting method of back mesh is
Rear Axle SPC000010
Page 41
