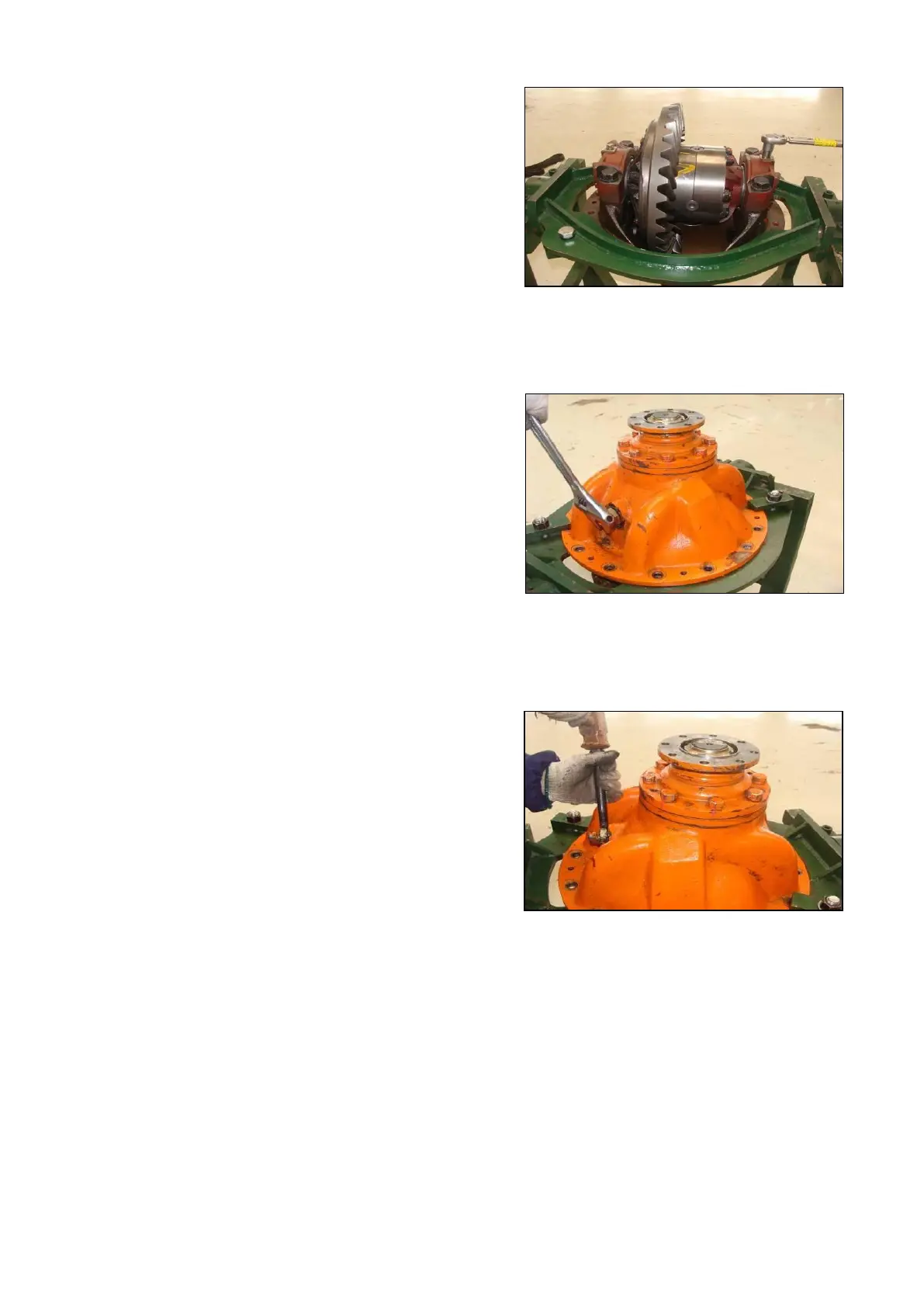

12. Install locking plate
Fasten the fixed bolts on bearing seat, fastening
torque is 410 ~ 510Nm. Put locking plate at the right
position, fix it on bearing seat with bolts and gaskets,
and fasten fixing bolts of locking plate.
Note: Fastening torque 40 ~ 50Nm
Nm
Note: Coat proper Letai 262 thread fastening sealant on
5-10mm length at the end surface of fixing bolt.
Note: Coat Letai 262 thread fastening sealant
13. Install thrust bolts
Overturn carrier, press copper cover into the side
with thrust bolts, twist into the center of carrier,
make copper contact with the back of driven spiral
bevel gear of differential assembly, reverse for 1/6-
1/4 circles, fasten with nuts and lock plate.
Note: Letai 598 sealant
14. Bend one of the teeth of lock pate to avoid
loosening of nuts.
Rear Axle SPC000010
Page 43
