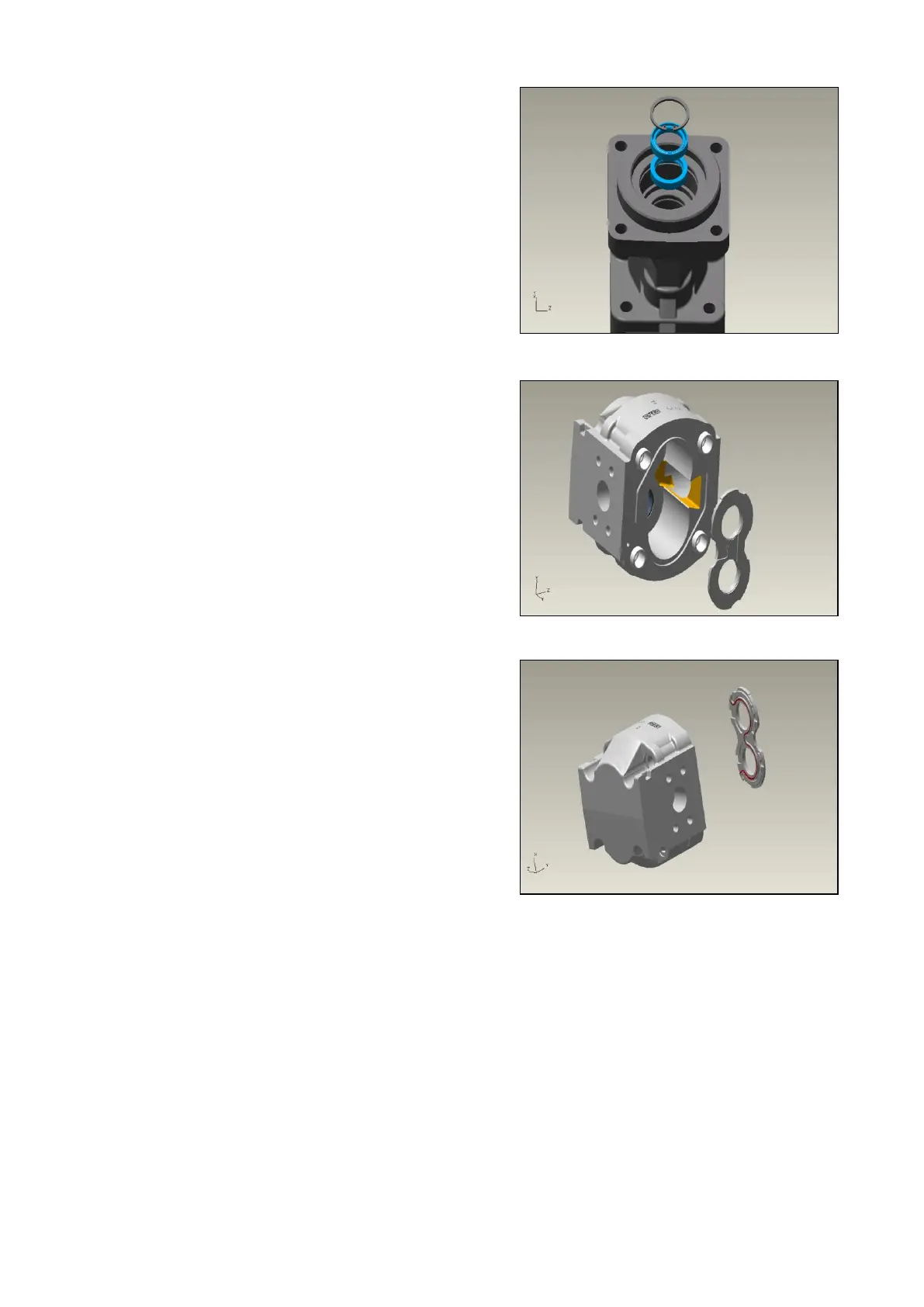

3. Locate shaft seal inside shaft hole to the end.
insert snap ring and locate it into the groove
prearranged.
4. prepare cleaned 2
nd
body prearranged guard
pins and square O- ring.
Insert a pressure plate prearranged O-ring &
back-up ring inside of body.
Opened area of O-ring should face to suction side.
And O-ring side should face to the body.
Main Pump SPC000012
Page 9
