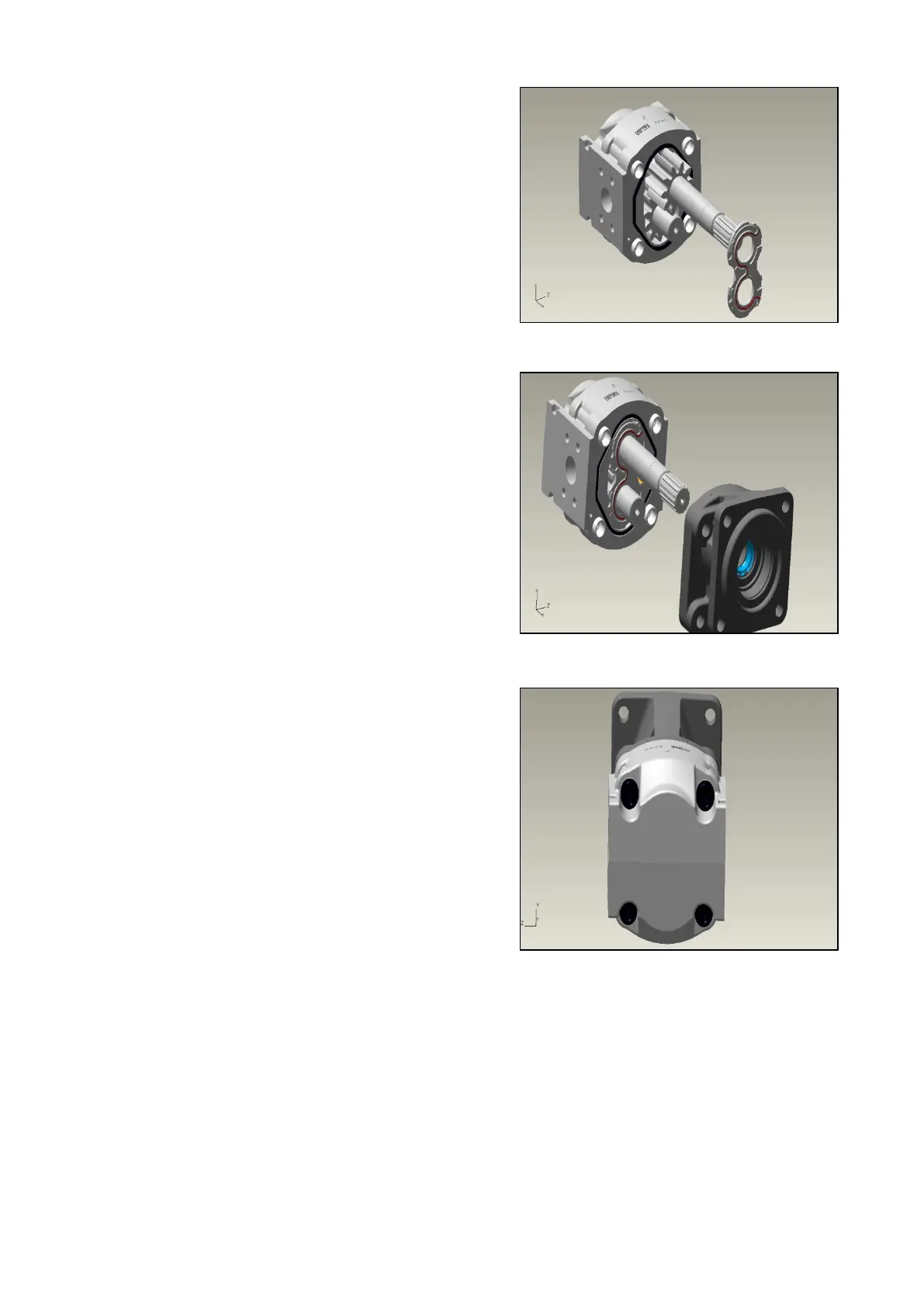

5. ① Locate driving gear and driven gear keeping
as straight as possible during assembling.
② Locate one of pressure plates pre-assembled.
6. ① Assemble mounting flange to the body, use
proper tools in order to avoid any damage on the
shaft seals by sharp edge of shaft.
☞ Smear clean grease on the lips of shaft seals
before assembling.
7. Assemble the bolts and tighten the bolts with in a
crisscross pattern to a torque value of 280 Nm.
SPC000012 Main Pump
Page 10
