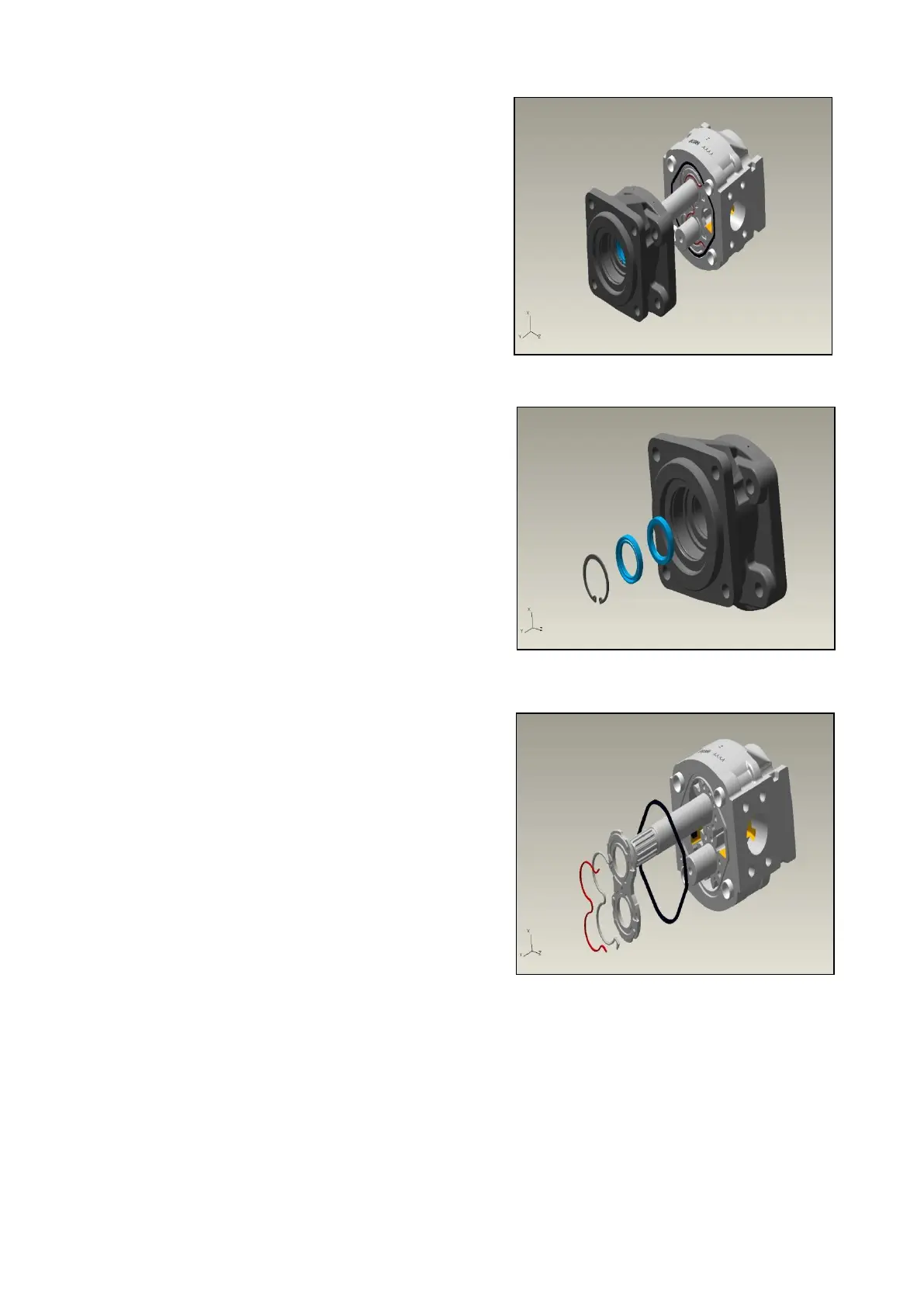

4. ① Remove mounting flange taking care to keep
it as straight as possible during removal.
Tap around the edge with rubber mallet in order to
break away from the body.
☞Ensure that while removing it, the drive shaft and
other components remain position. Use proper tool
to avoid shaft seal damage by sharp edge of shaft
5. ① Take out snap ring with proper tool and
Remove 2 shaft seal with (-) screwdriver.
☞Take out the shaft seals only needed: Shaft seals
disassembled from the mounting flange is not
reusable
6. ① Remove the pressure plate with prearranged
parts, O-ring & back up ring from the working
section and examine it carefully.
② Take out square O-ring from the groove on the
body.
☞Be careful not to give any damage on the surface
of rings.
SPC000013 Steer Pump
Page 8
