Disassembly and assembly steps
Disassembly steps

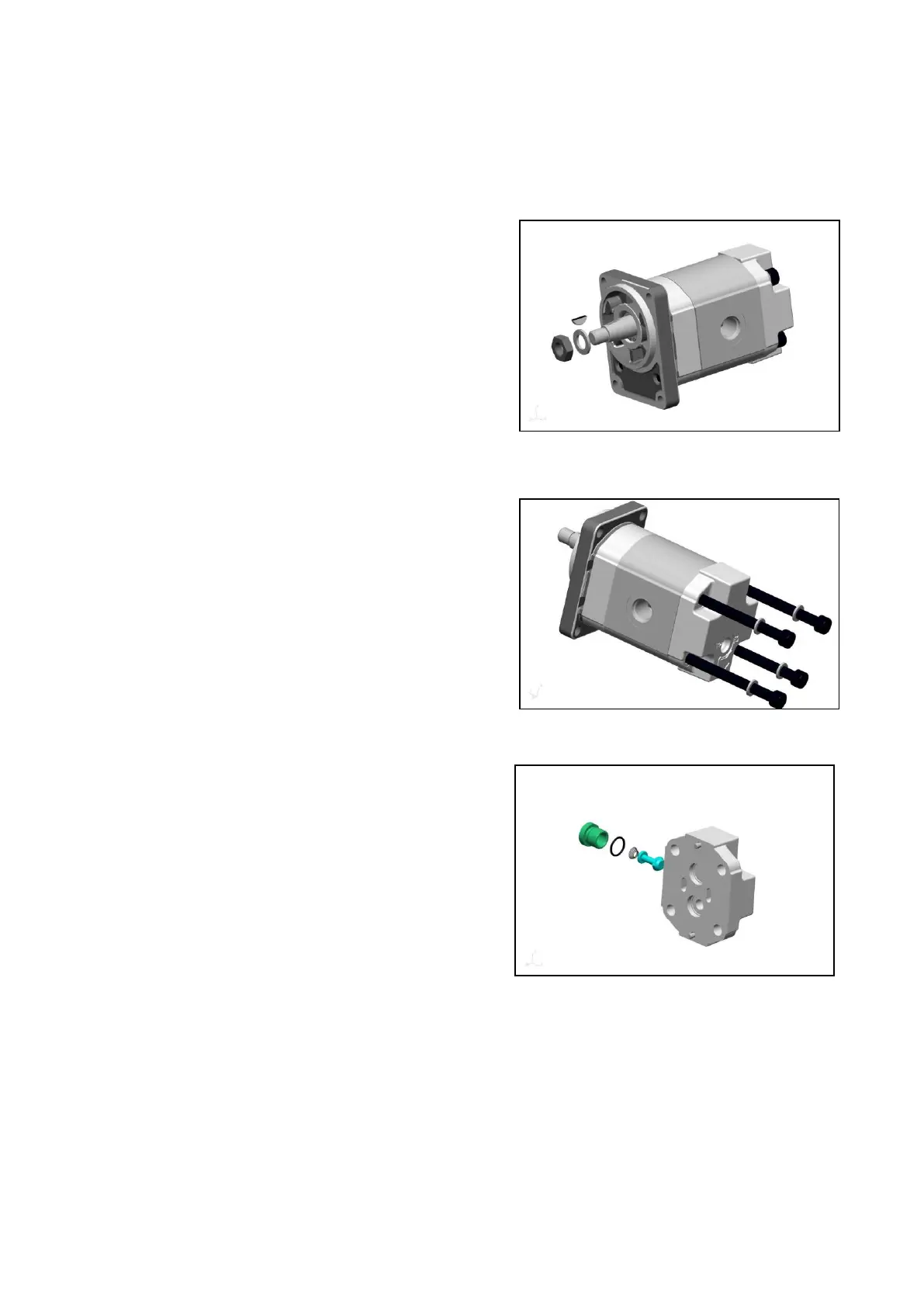

1. Loosen and remove the locking nut and washer,
key from the shaft.
2. ①Loosen and remove the assembling bolts and
washers from the motor.
3. ①Loosen and remove the valves from the cover.
☞ follow step 3 & 4 only when you need to change
O-rings of the plugs or valves.
SPC000018 Main Motor
Page 6
Figure 3
Figure 4
Figure 5
