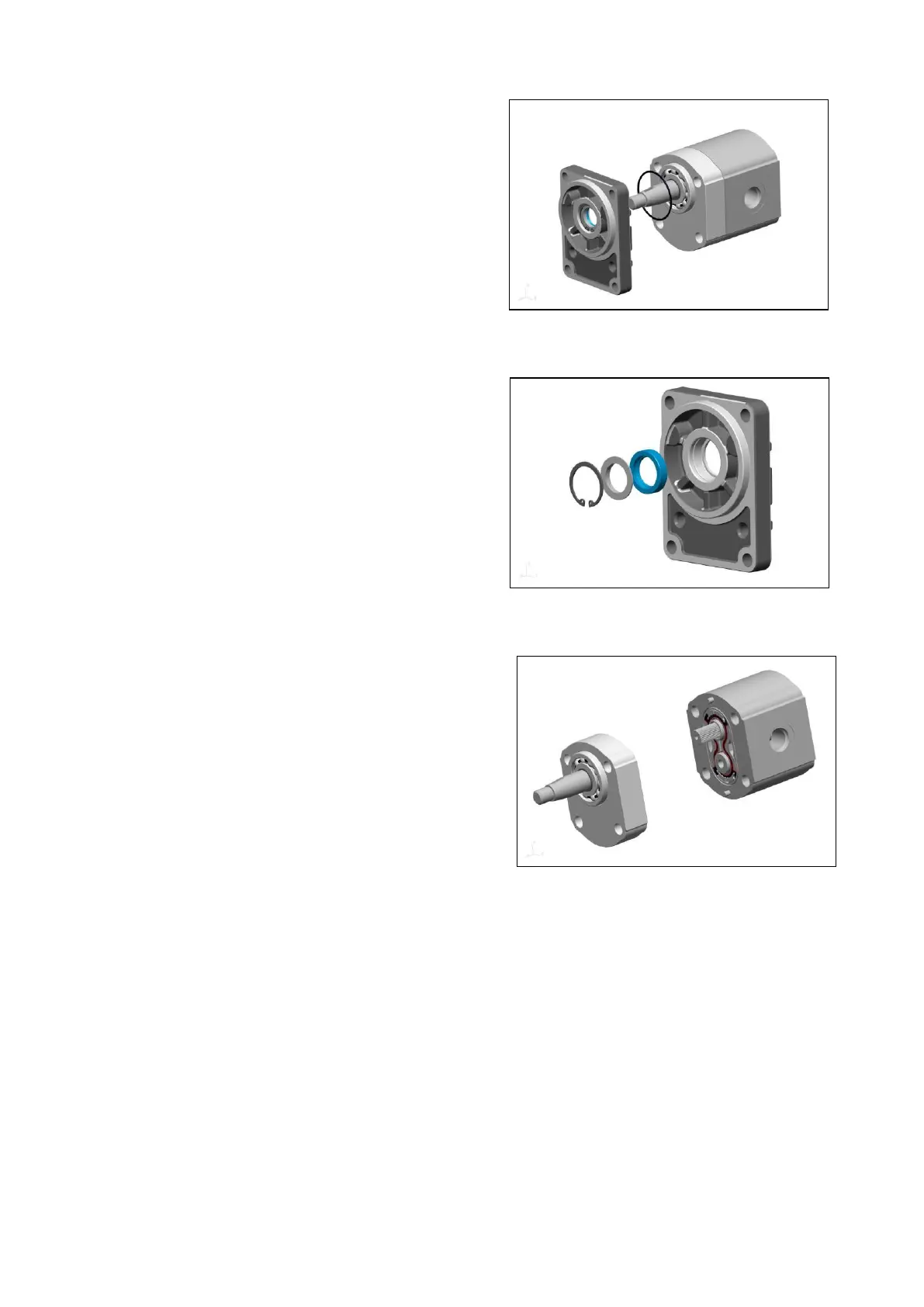

4. ① Remove mounting flange taking care to keep
it as straight as possible during removal.
☞Ensure that while removing it, the drive shaft and
other components remain position.
5. ① Remove shaft seal with (-) screwdriver and
take out snap ring with proper tool and shaft seal
again.
☞Take out the shaft seals only needed.
Shaft seals disassembled from the mounting flange
is not reusable
6. ① Take out 2nd flange, bearing assembled
Main Motor SPC000018
Page 7
