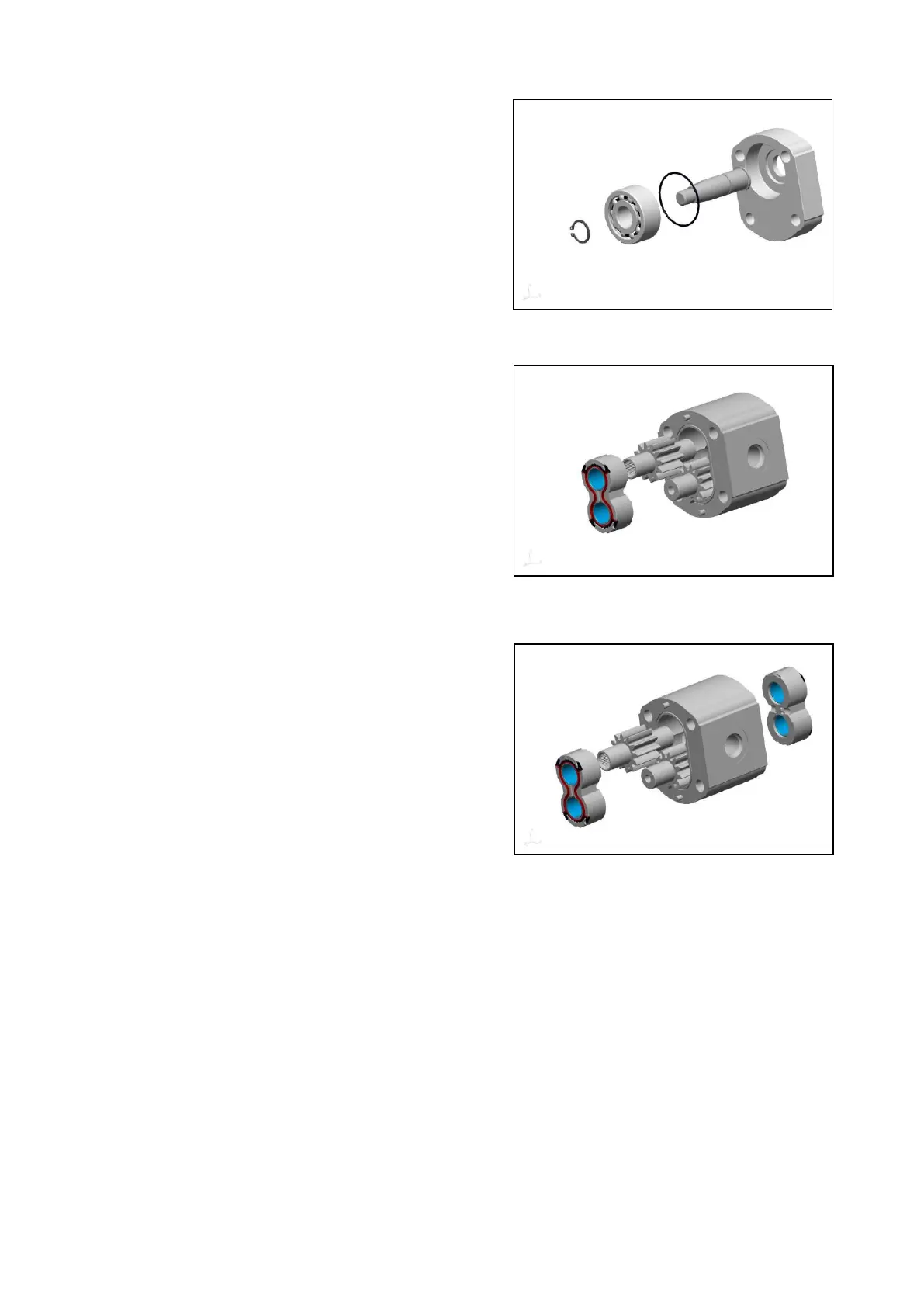

7. ① Take out bearing & shaft assembly from the
flange.
☞Only when the O-ring inside should be changed.
② Remove snap ring, then take out shaft to rear
side.
☞ following this process only for changing bearing
or shaft.
8. ① Remove the pressure plate with prearranged
parts, O-ring & back up ring from the working
section and examine it carefully.
② Pull out driving gear & driven gear keeping gears
as straight as possible
9. Remove other pressure plate on rear side with
same way for front side. .
SPC000018 Motor
Page 8
