Assembly process

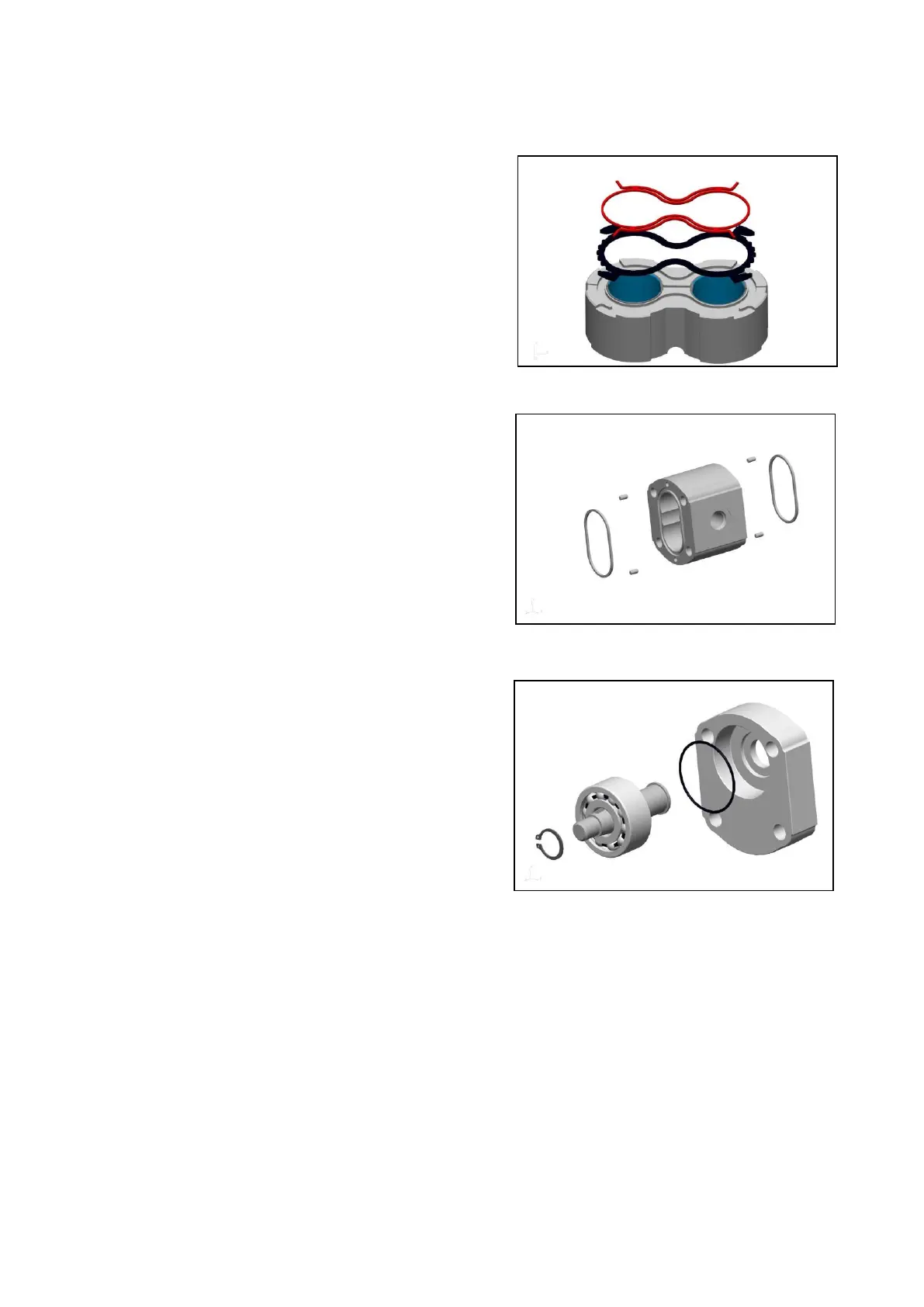

Assembling of sealing framework assembly
1. ① Locate O-ring into the grove on the aluminum
pressure plate.
② Locate back-up ring upon the O-ring.
③ Smear clean grease on the O-ring & back-up
ring to fix their position while moving.
2. ① insert square rings into the grooves.
Shape of square ring is different depend on
direction of body.
② Smear clean grease on the square rings to fix
their position while moving.
3. ① Locate O-ring first and fix the position with
grease.
② Insert bearing & shaft assembly. Use small
hammer to fit the bearing into the flange.
☞ be careful not to give any damage to the bearing.
Motor SPC000018
Page 9
