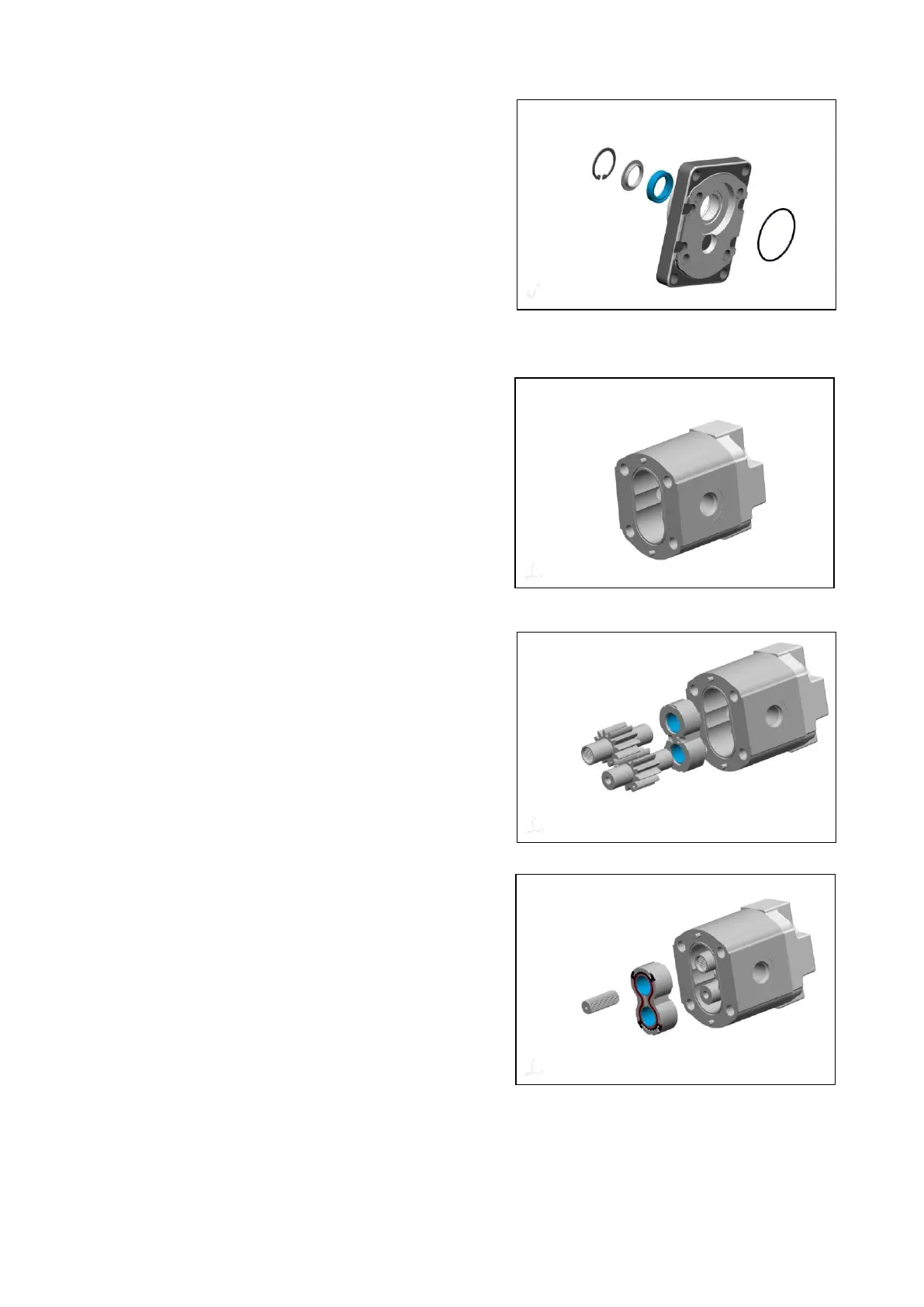

4. ① Insert shaft seal & backup washer.
② Insert snap ring and push it until to reach it to the
groove.
③ Insert last shaft seal into the flange inside out.
④ Locate O-ring first and fix the position with
grease.
5. Load working body on the rear cover.
6. ① Insert pressure plate until it its face meet the
rear cover.
② Locate driving gear and driven gear keeping as
straight as possible during assembling
7. ① Locate one of pressure plates prepared.
② Insert through shaft into driving gear.
SPC000018 Main Motor
Page 10
