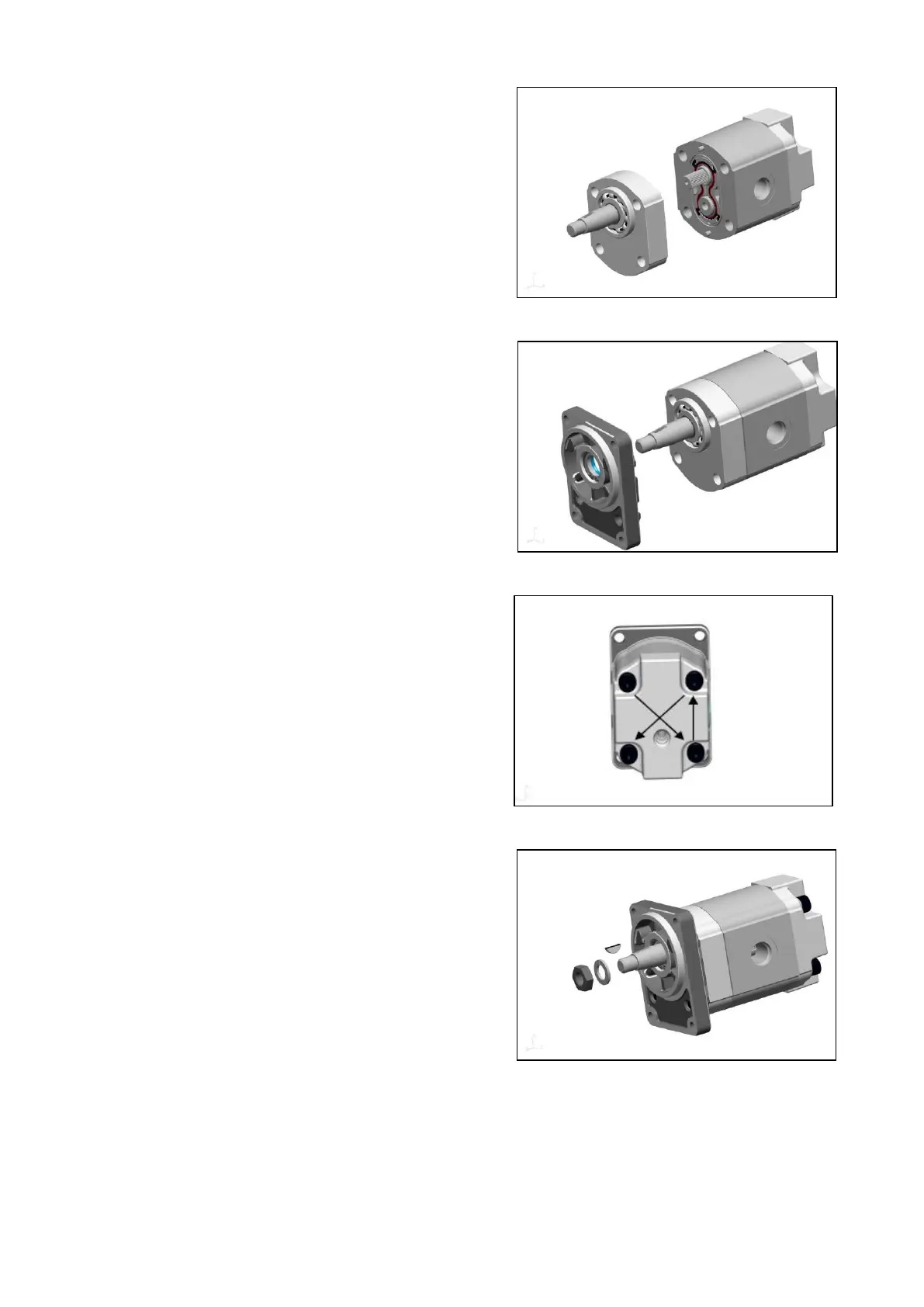

8. Load pre-assembled bearing flange on the
working body.
8. ① Load pre-assembled mounting flange on the
bearing flange.
☞ Smear clean grease on the lips of shaft seals
before assembling
9. ① Assemble the bolts and tighten the bolts with
in a crisscross pattern to a torque value of 45 Nm.
10. ① Locate a key on the shaft and load washer
and nut.
② Check that the pump rotates freely when the
drive shaft is turned by hand, if not a possible, plate
seal may be pinched.
Main Motor SPC000018
Page 11
