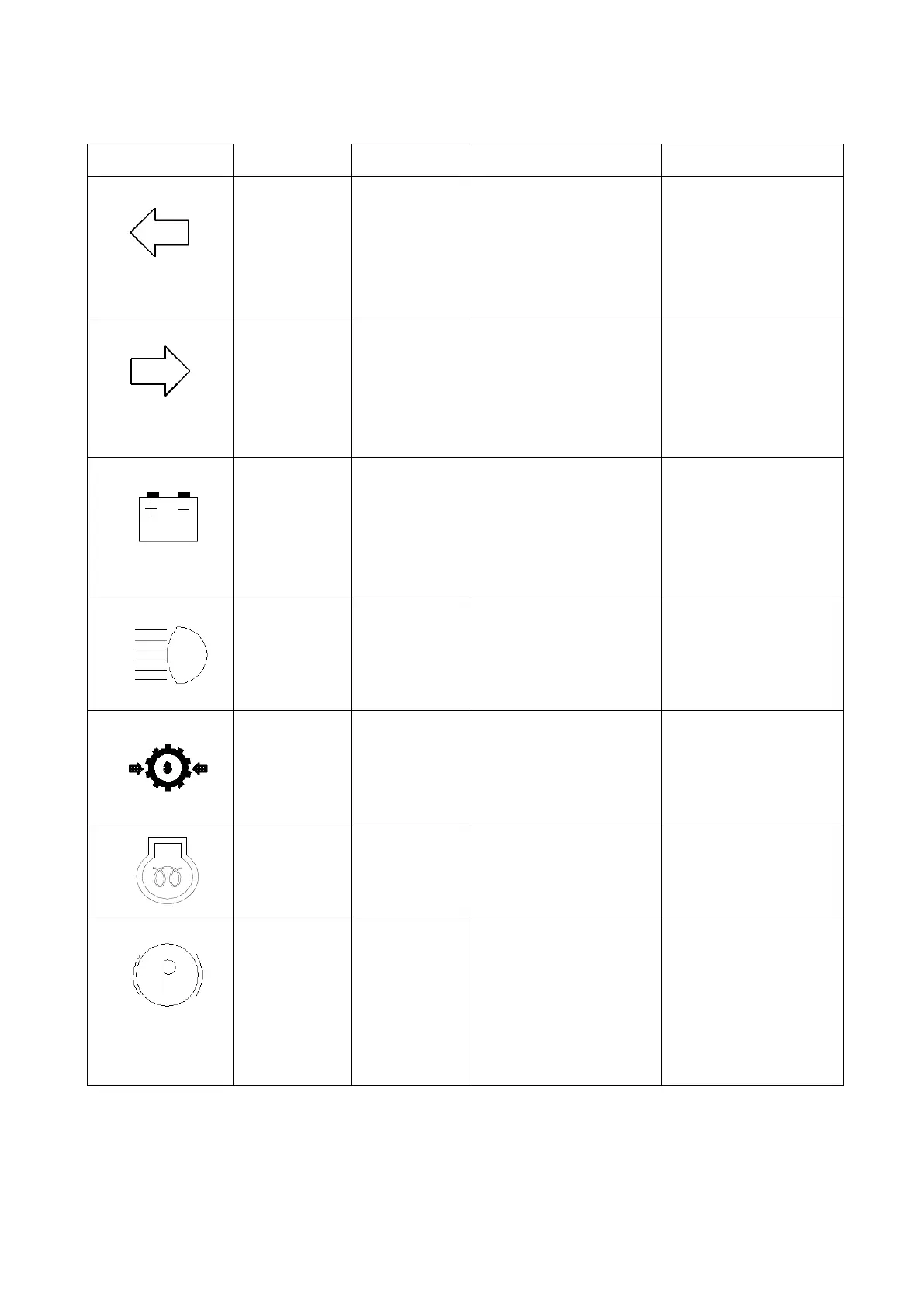

Indication light
 󲛎
󰰏 󱼋
󳕤󲃀󰄡
󰪞 
󱊹
Turn left and
dangerous
indication light
CN-24
The light is on when
turning left signal or
dangerous warning light
is turned on (the Max.
terminal input is 24V)
Turn right and
dangerous
indication light
CN-22
The light is on when
turning right signal or
dangerous warning light
is turned on (the Max.
terminal input is 24V)
Charging
CN-16
The light is on when not
charging (Generator D +
terminal output voltage
reduces to 24V)
Under normal condition,
light is on when
starting, light is off
when engine starts
working
Headlights on
full beam
CN-25
The light is on when
headlight on full beam is
turned on (The Max.
terminal input is 24V)
Oil pressure of
gear box
CN-17
The light is on when
pressure decreses to
1.1Mpa.
Preheat
CN-01
The light is on when
preheating system is
working
Parking brake
CN-18
The light is on when
brake switch is turned on
(pressure switch is off
when pressure is more
than 0.3Mpa, the Max.
input terminal is 24V)
When braking, the light
is on before engine is
started under any
conditions.
