Annex E IP Steel Controller (CS-01P)
E.1 Product Introduction
E.1.1 Names and Functions

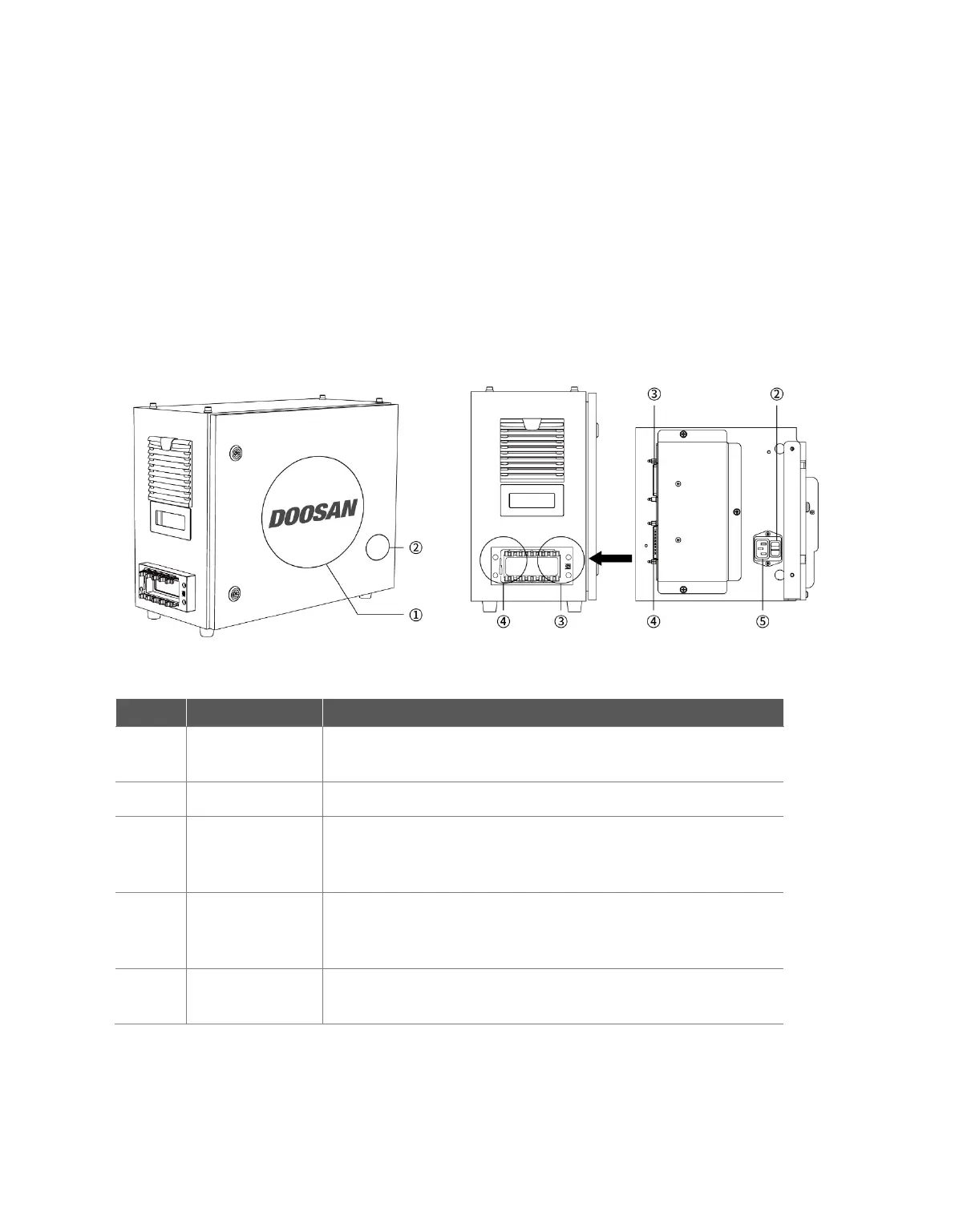

E.1.1.1 IP Steel Controller (CS-01P)
No.
Item
Description
1
I/O connection
terminal (internal)
Used to connect the controller or peripherals.
2
Power switch
Used to turn ON/OFF the main power of the controller.
3
Teach pendant
cable connection
terminal
Used to connect the teach pendant cable to the controller.
4
robot cable
connection
terminal
Used to connect the robot cable to the controller.
5
Power connection
terminal
Used to connect the controller power supply.
