3.3.5 Routing of Manipulator Cable and Teach Pendant Cable

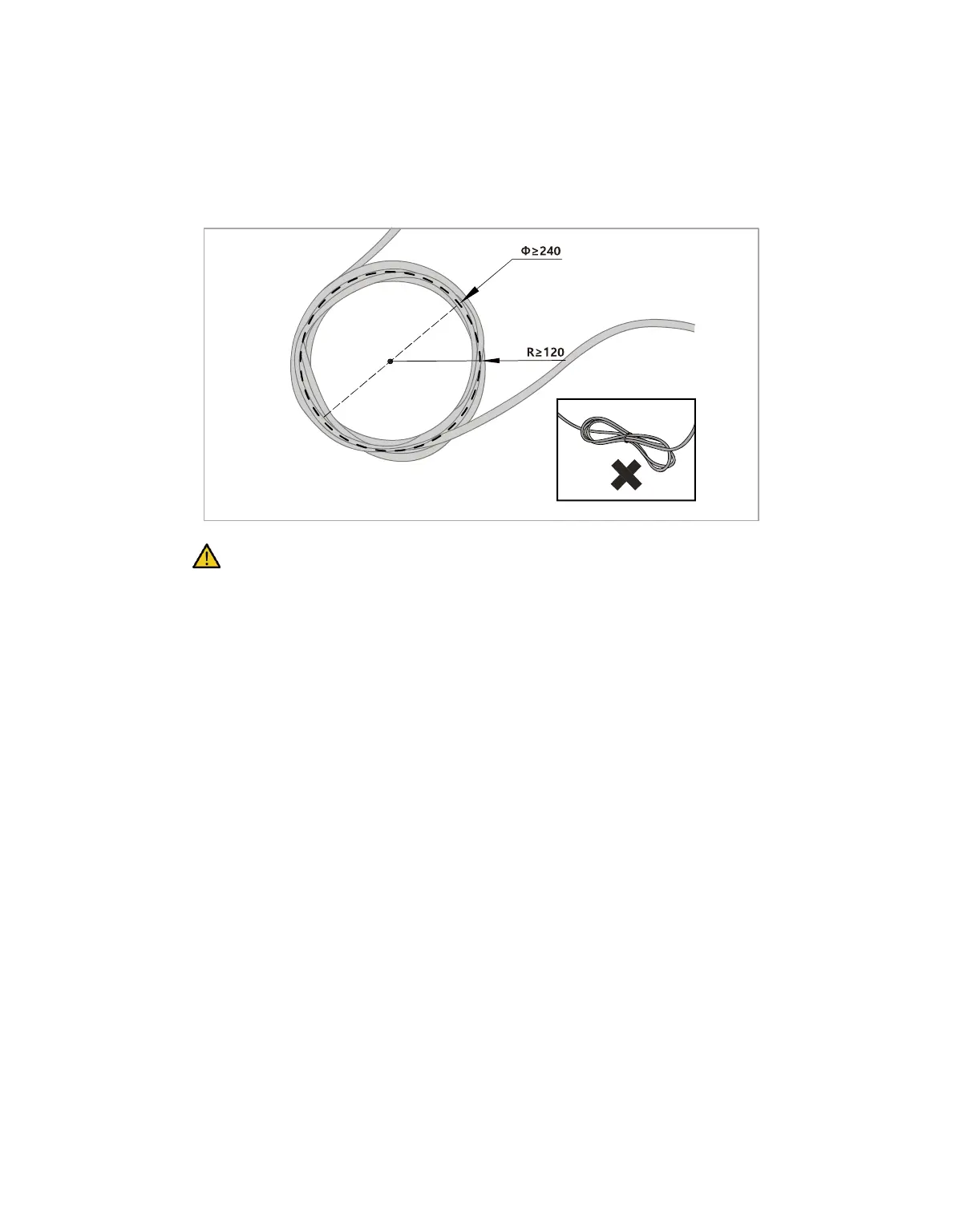

Ensure that the manipulator and teach pendant cable curvature radius is greater than the
minimum curvature radius (120 mm) during routing.
Caution
Ensure that the curvature radius between the teach pendant cable and teach pendant
connector is greater than the minimum curvature radius (120 mm).
If the curvature radius is smaller than the minimum curvature radius (120 mm), cable
disconnection or product damage may occur.
In environments where electromagnetic noise can occur, proper cable installation must be taken
to prevent malfunctions.
