77

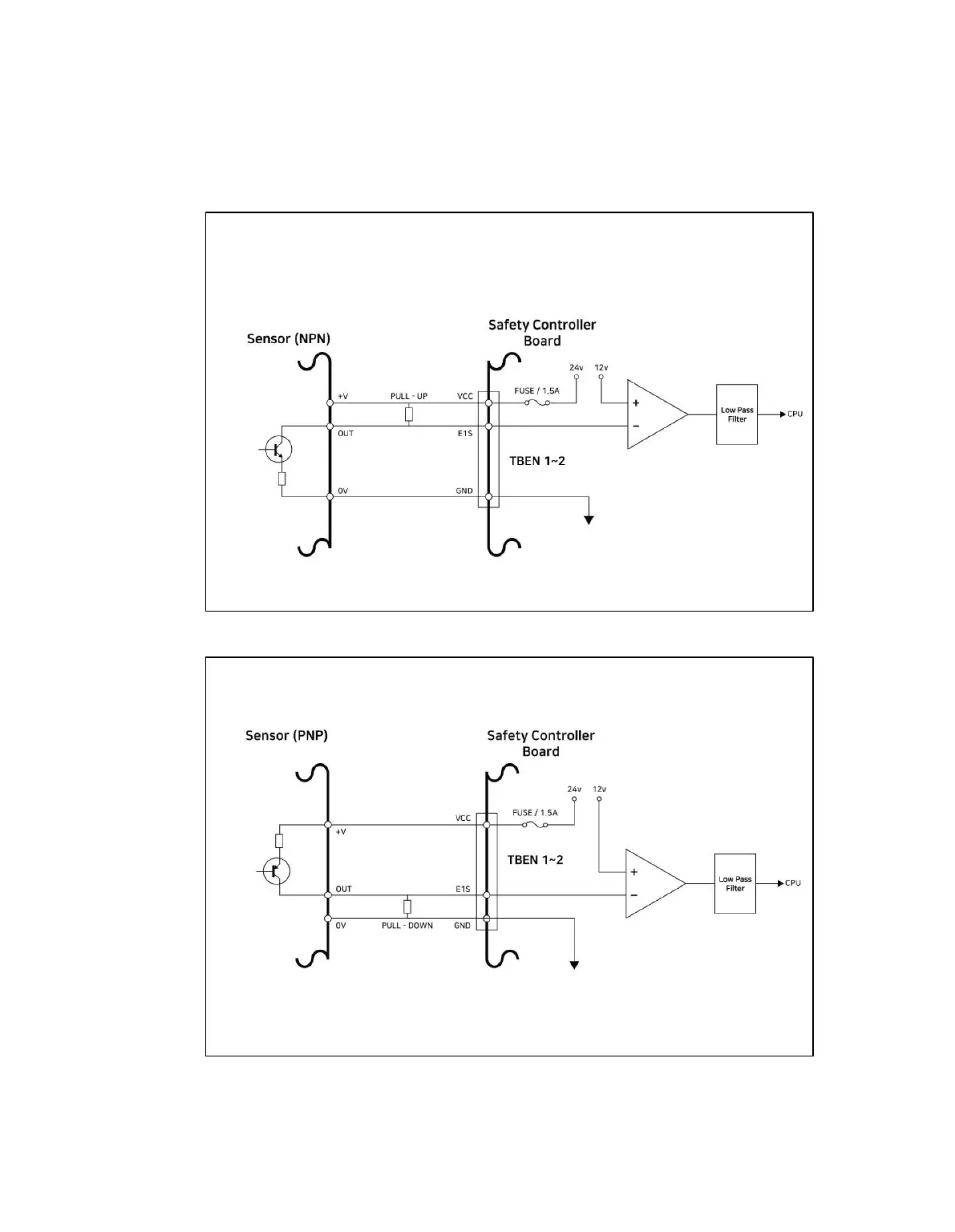

• In the case of S phase inputs, connect a pull-up or pull-down resistance according to the sensor
type(NPN/PNP) to prevent floating.
• Connecting NPN Sensor
• Connecting PNP Sensor
