Compressed Natural Gas (CNG) Option
Copyright 2020, Heil Environmental
Printed in U.S.A.
250
HEIL CNr
(CONTINUED)
System Inputs
The display screenshot shown below (within the
maintenance mode menu) is used for troubleshooting and
maintenance to gather information for the current status of
the Ignition Power (ON or OFF) and the system voltage
the software revisions of the Cortex Display and Cortex
Controller programs.

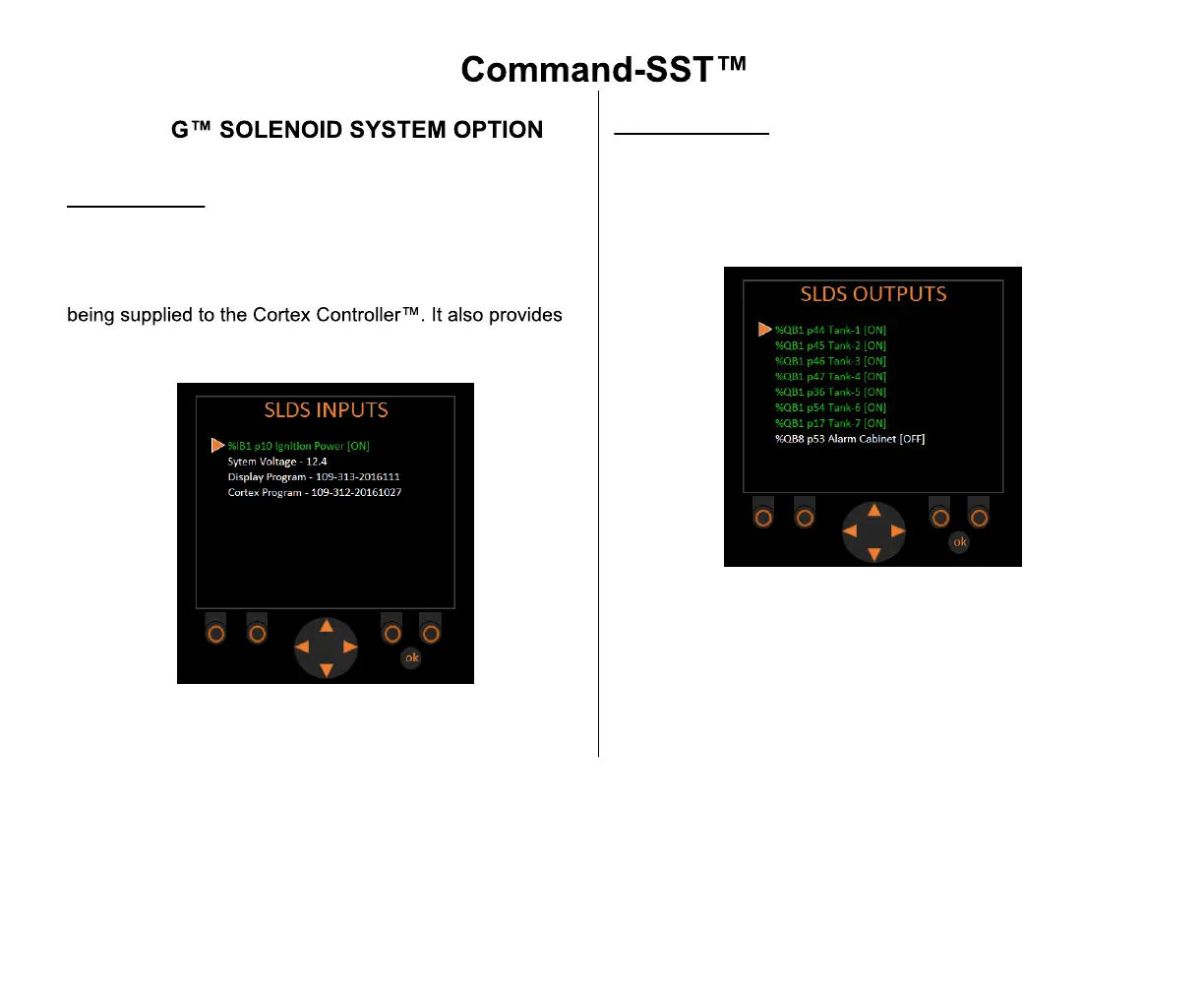

Figure 92. Display Screenshot:
System Inputs
System Outputs
The display screenshot shown below (within the
maintenance mode menu) is used for troubleshooting and
maintenance to gather information for the current status of
the Solenoids on each Tank (ON or OFF). It also provides
the status of the System Alarm for the Cortex Controller.
Figure 93. Display Screenshot:
System Outputs
