Product description
3.1.4.1 Connectors on the rear sensor wall

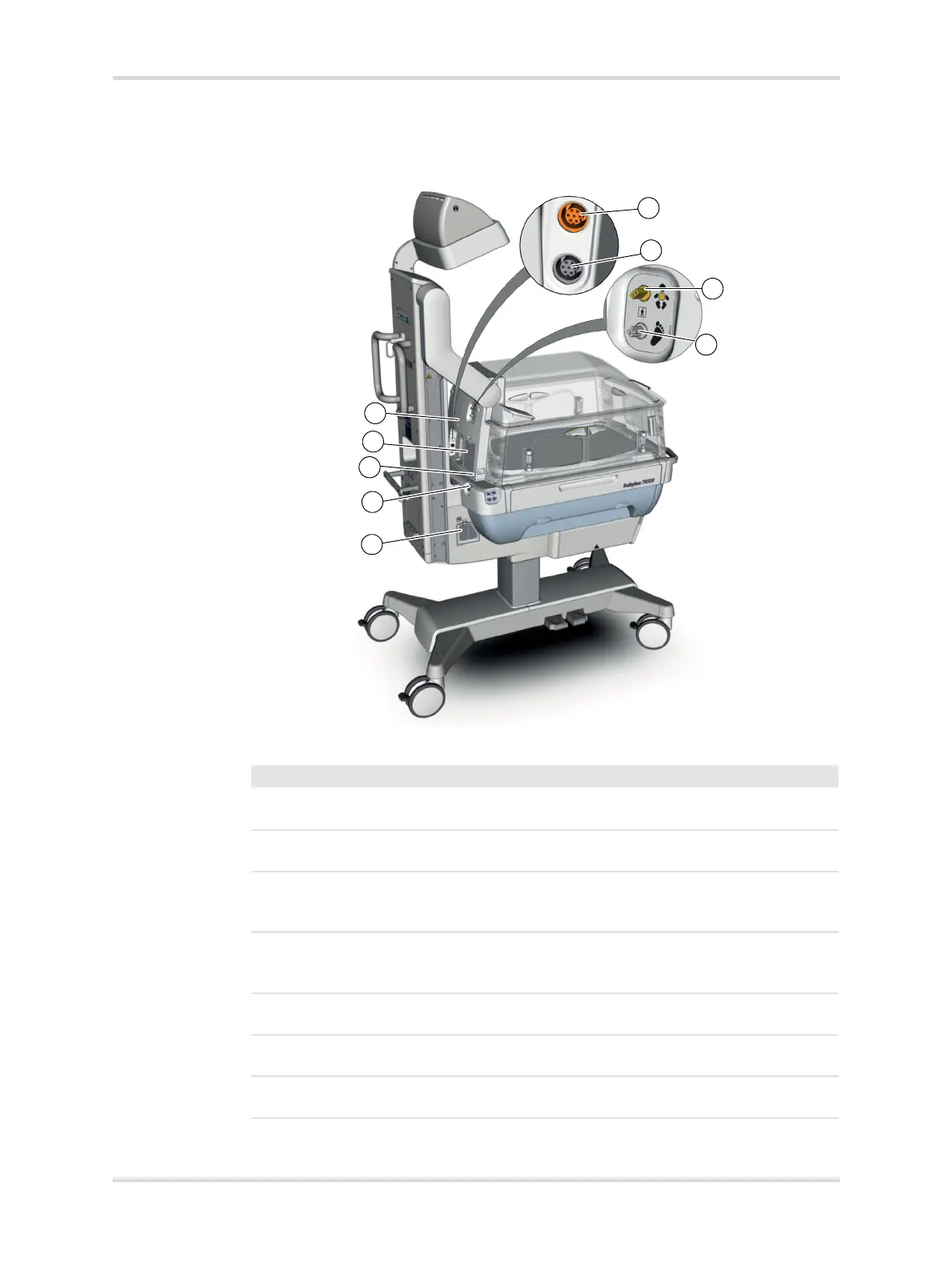

Fig. 8 Connectors on the rear sensor wall
27216
No. Designation Description
1 Heated mattress connector
(orange)
For connecting the heated mattress (option) to
the device.
2 Scale connector (gray) For connecting the scale (option) to the
device.
3 Central skin temperature
sensor connector (yellow)
For connecting the skin temperature sensor for
measuring the central skin temperature to the
device.
4 Peripheral skin tempera-
ture sensor connector
(white)
For connecting the skin temperature sensor for
measuring the peripheral skin temperature to
the device.
5 Ventilation slot (in front of
the power supply unit)
Used to discharge air.
6 Luer Lock connector Connects the water bag hose to the humidifi-
cation system of the device.
7 Audio connector (option) For connecting an audio cable from an exter-
nal playback device.
1
2
3
4
5
8
7
6
9
