Dräger Oxylog VE300 - Device Reprocessing; Disassembly Procedures

98 Instructions for use | Oxylog VE300 SW 1.n
Reprocessing
12 Reprocessing
12.1 Disassembly

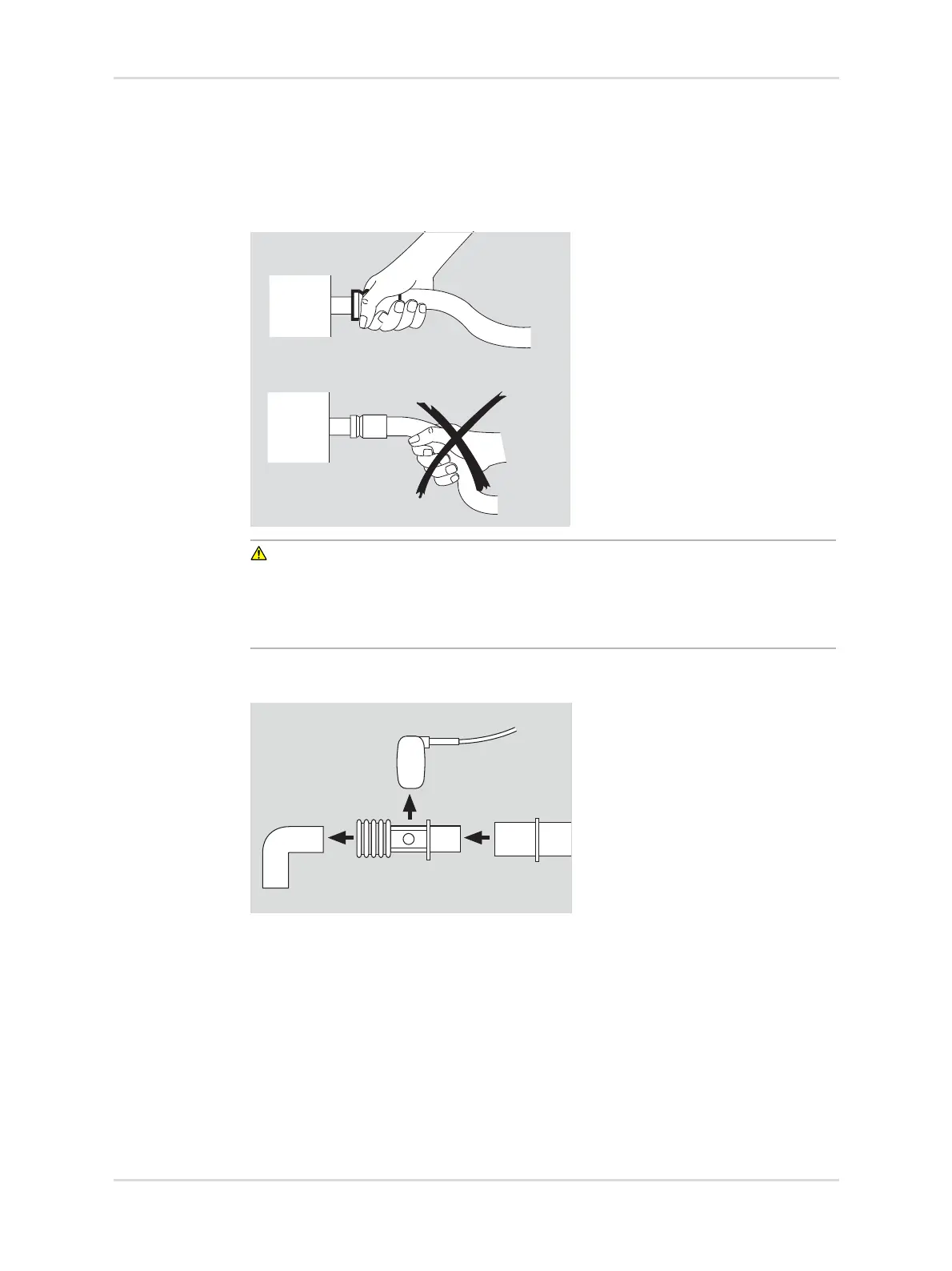

Removing the breathing hose from the device
CAUTION
Damage to the device
The breathing hose may tear or be damaged if it is removed incorrectly.
► Always hold the sleeve (A), never the folds (B), when removing the breathing
hose from the device.
Disassembling the CO
2 sensor and the CO2 cuvette (option)
1. Unplug the CO
2 sensor connector from the device.
2. Remove the CO
2 sensor (B) from the CO2 cuvette (C).
3. Remove the CO
2 cuvette (C) from the flow or pressure sensor (D).
4. Remove the elbow (A) from the cuvette (C).
Disassembling the reusable breathing circuit for adults
1. Disconnect the breathing hose from the device.
2. Disconnect the pressure measuring line from the device port.
3341230172
A
B
A
B
C
D
