Dräger Savina

Care
69

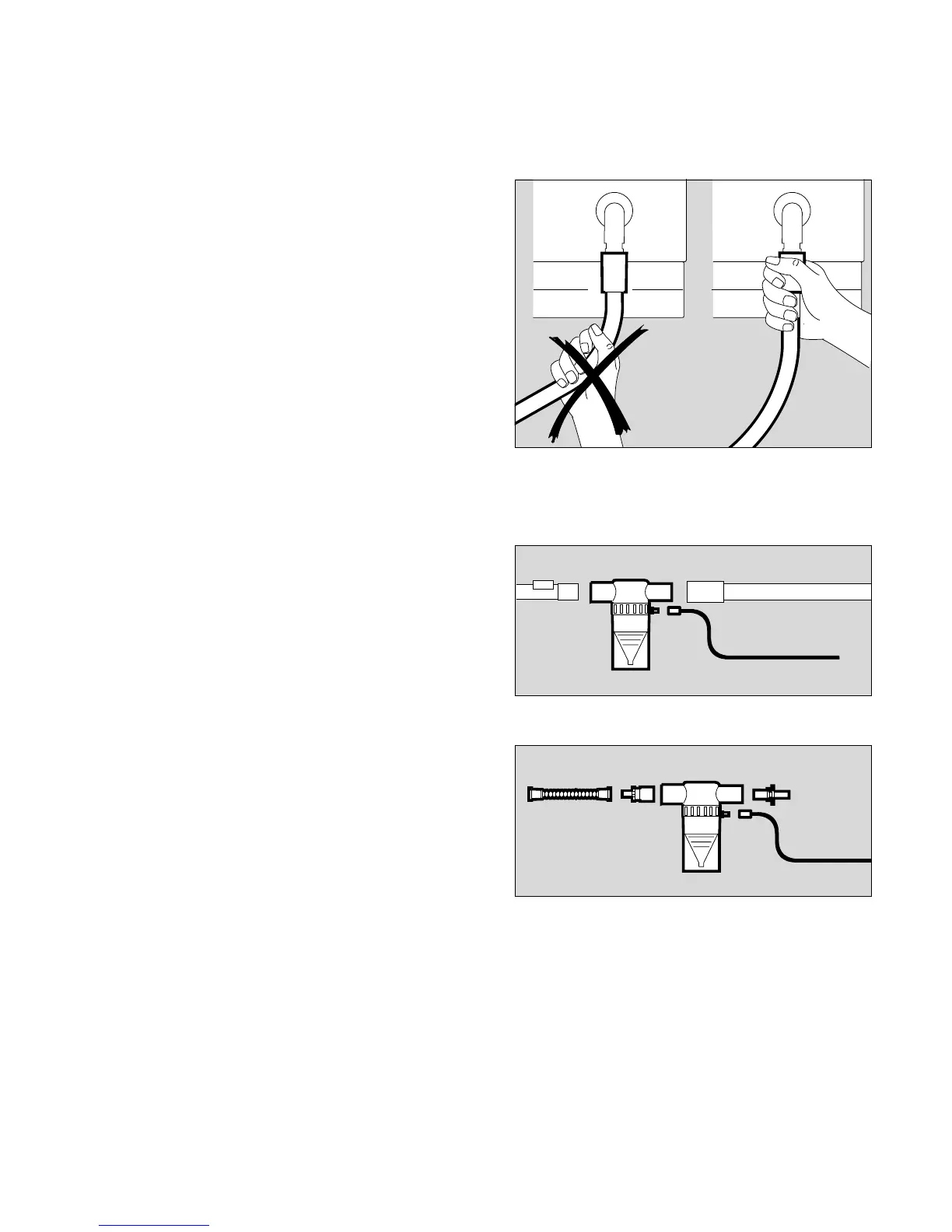

● When removing the ventilation hoses, always grasp
them by the sleeve, never by the hose itself, to avoid
possibly tearing the hose at the sleeve or ripping it out
of the sleeve.
Medicament nebulizer (optional)
1 Remove nebulizer hose from the medicament nebulizer and
from the spigot on the device.
2 Pull medicament nebulizer out of the adult hose set, or
2 dismantle medicament nebulizer from the paediatric hose
set.
3 Pull catheter connector (ISO cone ø15/ø11) out of the
input.
4 Pull spigot (ISO cone ø22/ø11) out of the output.
5 Pull corrugated hose out of the spigot.
● Dismantle and prepare medicament nebulizer in
accordance with the accompanying instructions for use.
093 29 170016 29 170
1
2
021 29 170
5
4
2
1
3
