Ducati MULTISTRADA V2 - Page 42

 the passenger seat
Check correct rider seat positioning according to low
mode or high mode.

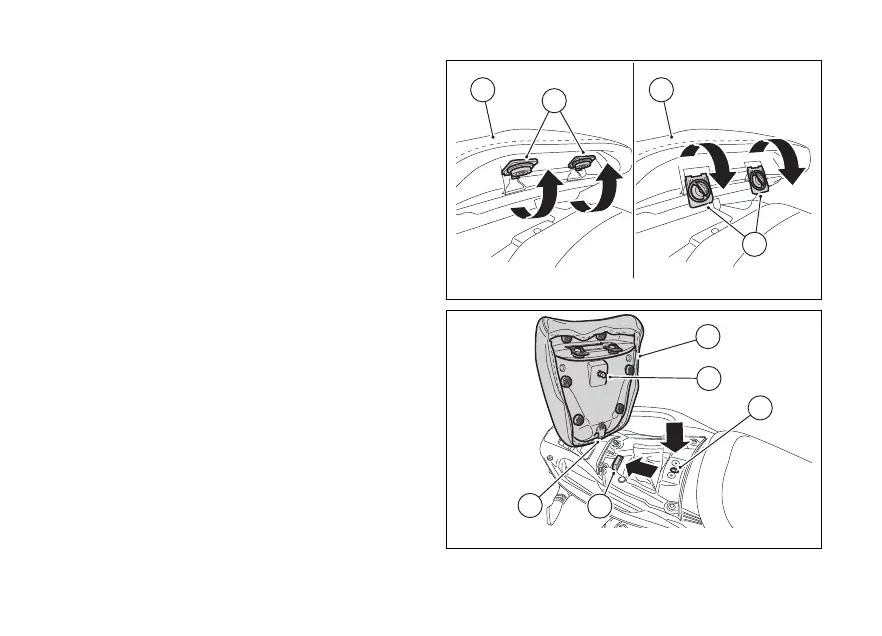

If the rider seat has been fit in low mode, turn the
brackets with rubbers blocks (D) of the passenger
seat (2) upwards (Fig 17).
If the rider seat has been fit in high mode, turn the
brackets with rubbers blocks (D) of the passenger
seat (2) downwards (Fig 17).
Position the passenger seat (2) on the rear subframe
by  tab (3) into seat (8) inside of the tool

Push the passenger seat (2) downwards to block pin
(9) into the seat lock (10).
Make sure the passenger seat (2) is properly
fastened by moderately pulling it up.
Take key out of the lock.
2
D
D
2
Fig 17
2
3
8
10
9
Fig 18
41
