Ducati PANIGALE V4 - Engine Rpm Indication (RPM)

Engine rpm indication (RPM)

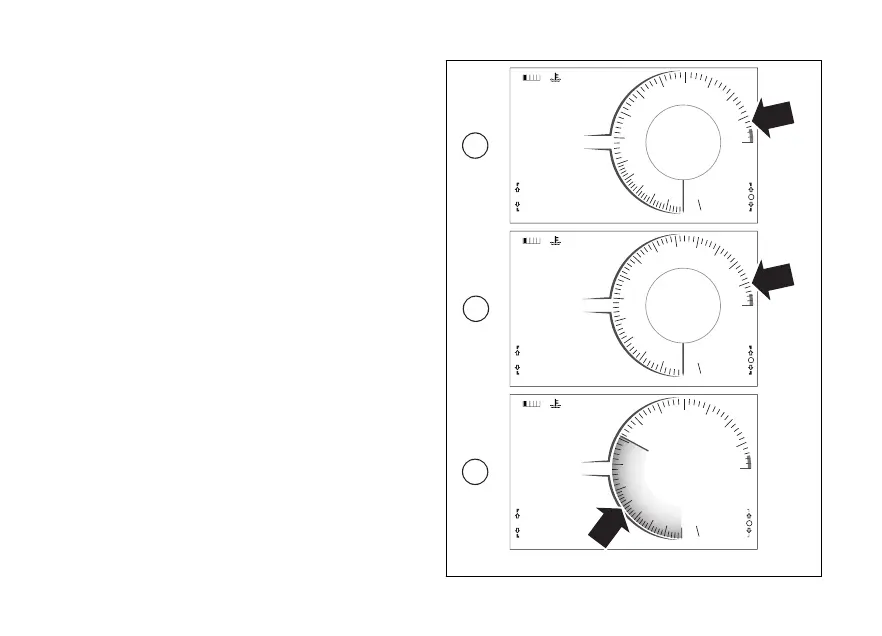

The instrument panel receives the engine rpm
information and displays it using a needle rev counter.
The rev counter is displayed in mode (A) in TRACK
view and is displayed in mode (B) in ROAD view.
The needle movement is followed by a grey wake in
DAY mode (C) and by a white wake in NIGHT mode.
When exceeding 13000 rpm, the needle wake turns
amber yellow (for Performance engine control units
the threshold is 12500 rpm), while when the first
limiter threshold (Over-rev) is reached, the wake turns
red and warning light 15 ( turns on. The red wake
flashes when the limiter (Over-rev) activates.
If the number of rpm is lower than 1000, the needle
wake is not displayed.
