Adjusting the position of the gearchange
pedal and rear brake pedal
The position of the gearchange and rear brake pedals
in relation to the footrests can be adjusted to suit the
requirements of the rider.
Adjust the pedals as follows:
Gear change pedal
The position of the gear change pedal in relation to the
footrest can be adjusted to suit the requirements of
the rider.
To correctly operate on the rod, remove the relevant
side fairing.
Warning
Have the gearchange rod adjusted at a Ducati
Dealer or authorised Service Centre.
Hold linkage (1) using the special flat (A) and loosen
nut (2).
Fit an open-end wrench to hexagonal element of
linkage (1) and rotate until setting pedal in the desired
position.
Tighten nut (2) onto linkage.

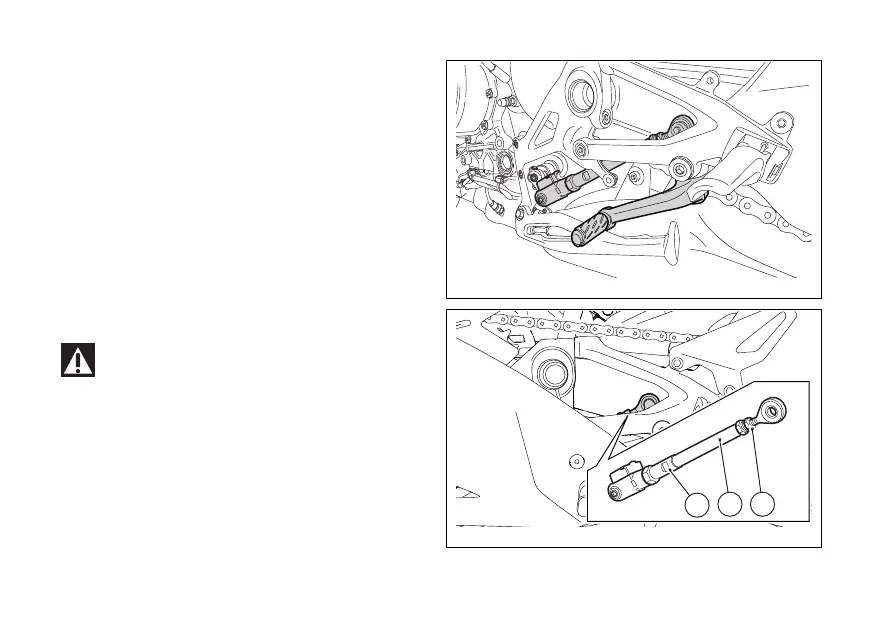

Fig. 196
Fig. 197
