Chapter 2 Basic Operation
7) Set the auxiliary stopper to paper receiving stopper 1.
The auxiliary stopper is used for preventing shifting of paper above A4 size.
It can be removed when using paper below A4 size.
8) Adjust the side guide F to the paper size.

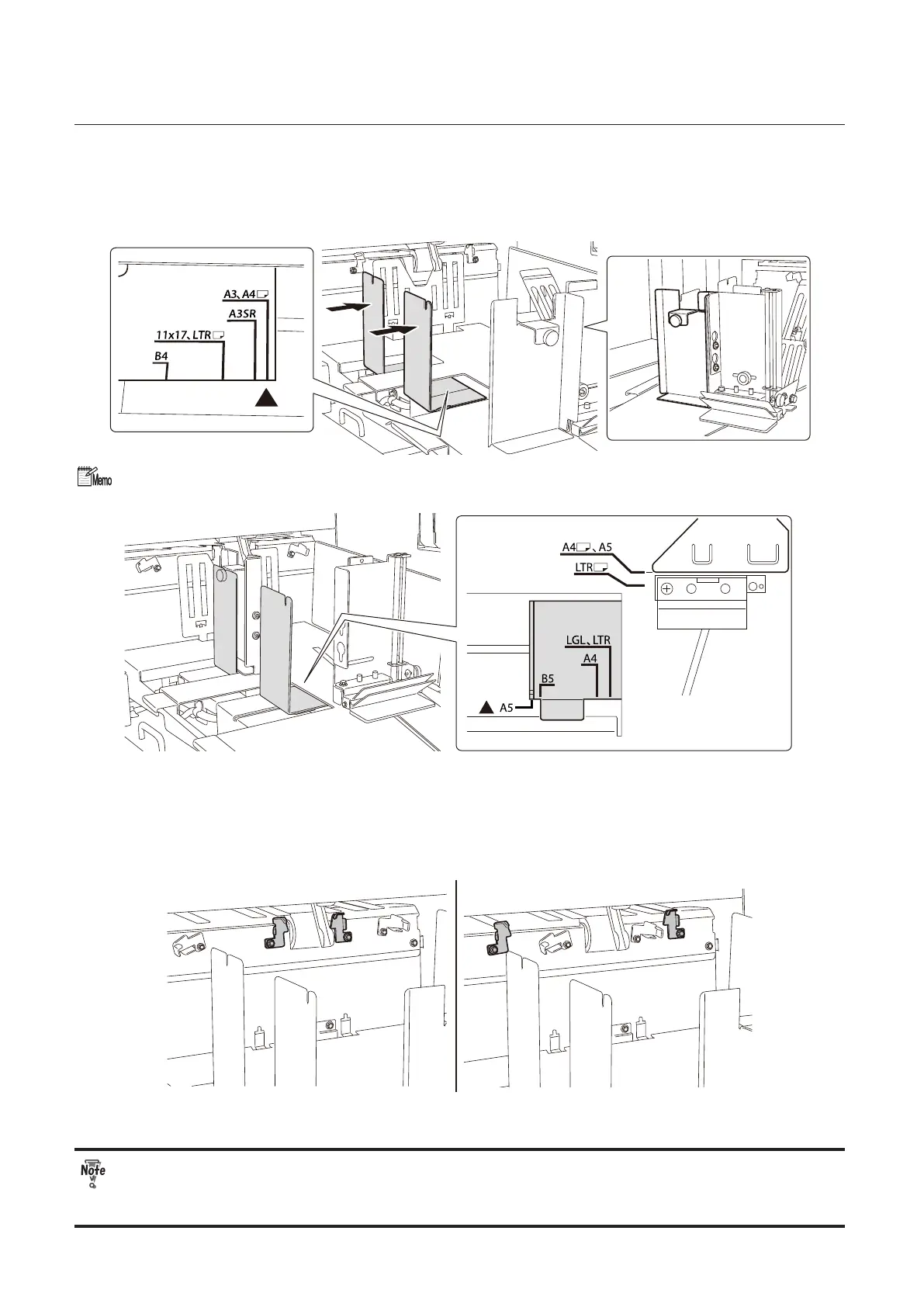

When using A5 paper, adjust paper receiving stopper 1 and side guide F to the positions shown in the
following gure.
9) Remove the back joggers and set the auxiliary jump brackets according to the paper.
Standard position: two auxiliary jump brackets at center
When using more than ten sheets of coated paper (less than 84.9 g/m
2
) larger than A3/LD size, push
down the two auxiliary jump brackets at the center and stand the ones outside upright.
Two points at center Two points at outside
10) Set the back joggers.
• After setting the auxiliary jump table, be sure to set the back jogger.
• If faulty sets are ejected in the sorting mode, remove all sets from the ejection stacker.
Sorted paper will not be aligned properly if only the faulty sets are removed.
