Duplo DSC-10/20 User Manual

2-18
Chapter 2 Basic Operation
2

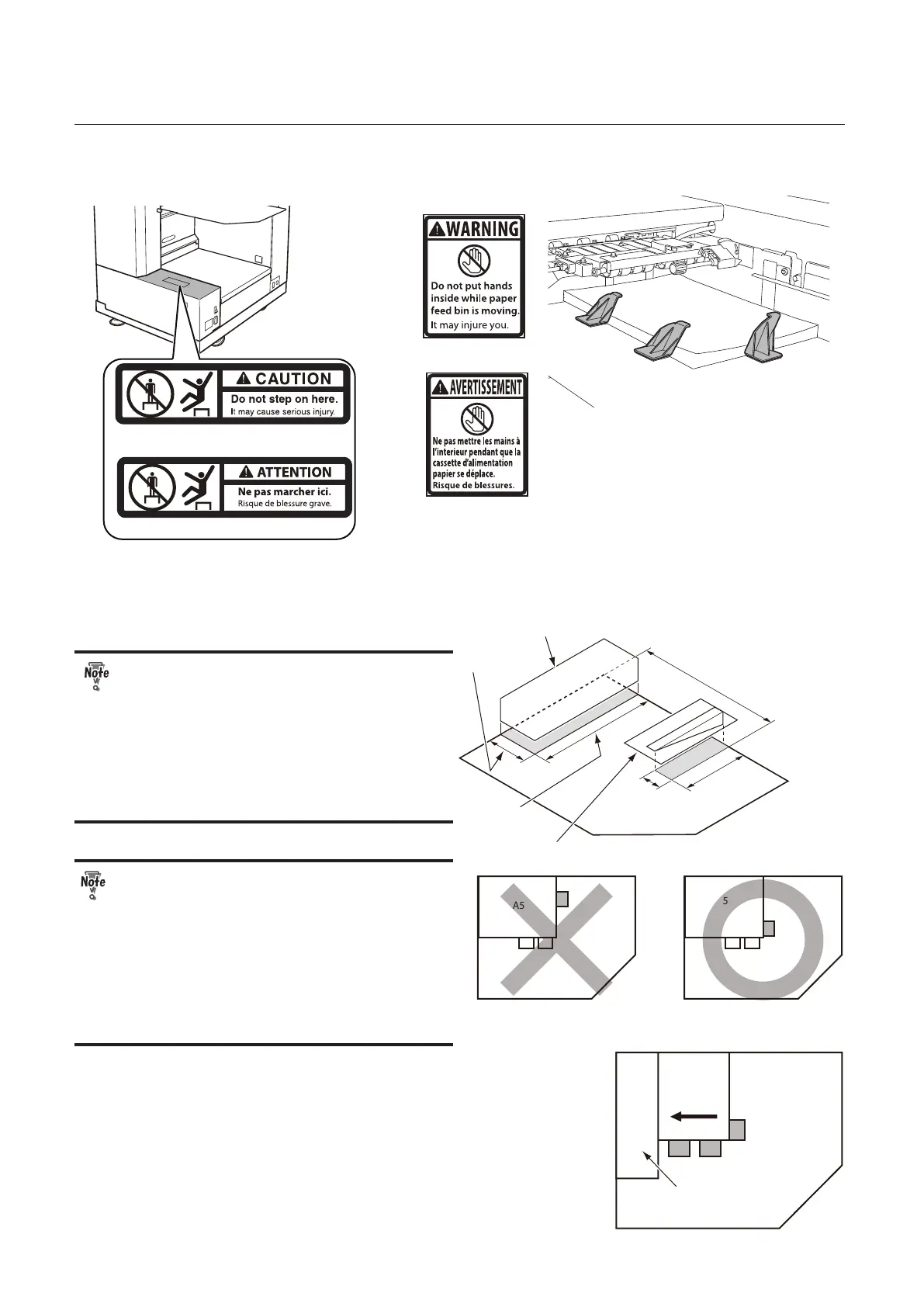

Press the paper guides against the front and right side of the paper lightly.
(For North America)
(For North America,EU)
(For North America)
(For North America,EU)
Suction box
150mm
(5.91inches)
220mm (8.66 inches)
(Even-numbered bin)
270mm (10.63 inches)
(Odd-numbered bin)
Paper feed bin base
240mm
(9.45 inches)
100mm
(3.94inches)
30mm
(1.18inches)
Do not set the paper guides at the areas shad-
ed in the right gure.
• Miss feed may occur if the paper guides
are pressed against the paper too
strong.
• Do not place the paper guide below the
suction belt.
Otherwise the paper guide will lift up
the suction belt and cause the machine
to stop.
A5
A5
When using B5 paper, the right paper guide
will be positioned below the paper bin base
in odd-numbered bins. When conveying A5/
IN or A4/LT paper, it will be positioned be-
low the paper bin base in even-numbered
bins.
Do not move the paper guides far inside
(non-operating side) as this will cause er-
rors.
A5
Suction box
When using A5/IN paper, set the position of
the paper guides as shown in the gure.
