Operation
Operating Instructions 878-M PREMIUM - 02.0 - 02/2018 29

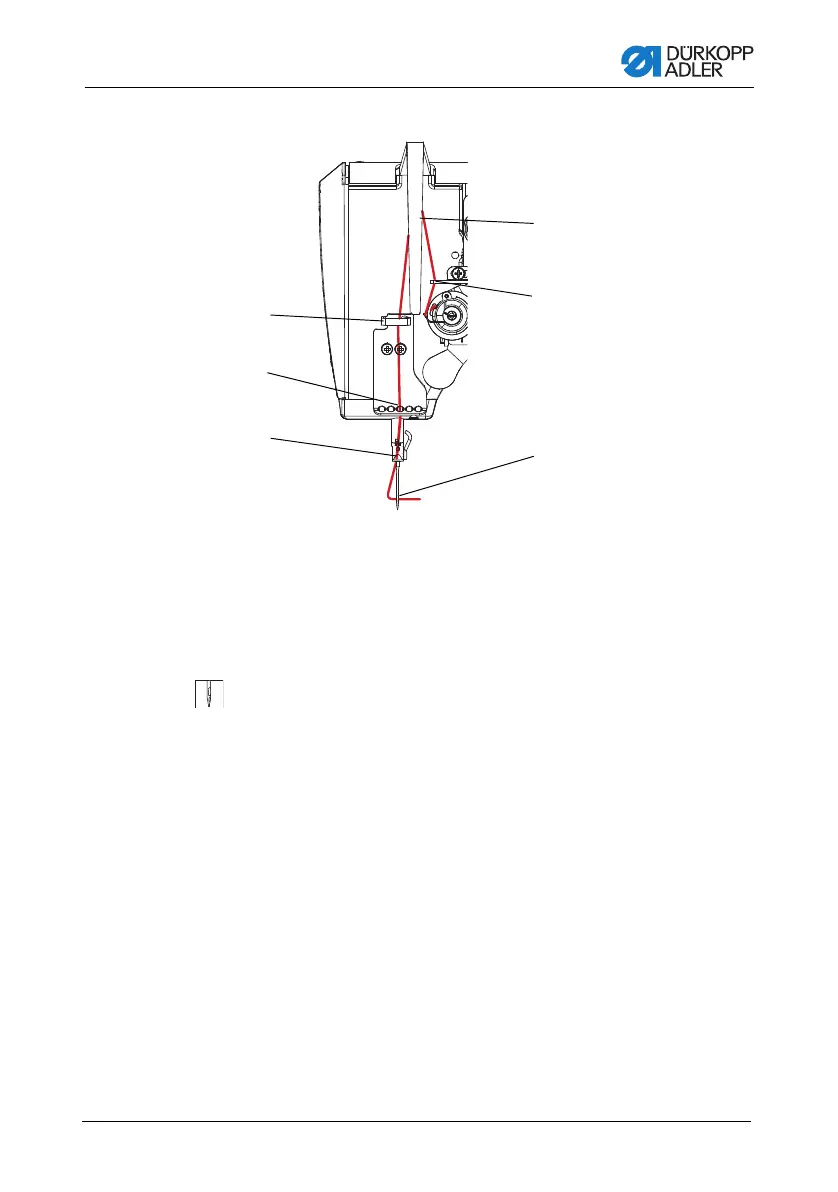

Fig. 10: Threading procedure for needle thread - part 2
10. Insert the thread from bottom to top through the hole on the
thread regulator (13).
11. Insert the thread from the right to the left through the thread
lever (14).
12. Insert the thread through the upper thread guide (9).
13. Insert the thread through a hole in the lower thread guide (10).
14. Insert the thread through the thread guide on the needle
bar (11).
15. Insert the thread through the needle eye (12) in such a way
that the loose thread end faces the hook.
(9) - Upper thread guide
(10) - Lower thread guide
(11) - Thread guide on the
needle bar
(12) - Needle eye
(13) - Thread regulator
(14) - Thread lever
