Setup
Operating Instructions 878-M PREMIUM - 02.0 - 02/2018 59
7.7.2 Fitting the pedal and setpoint device

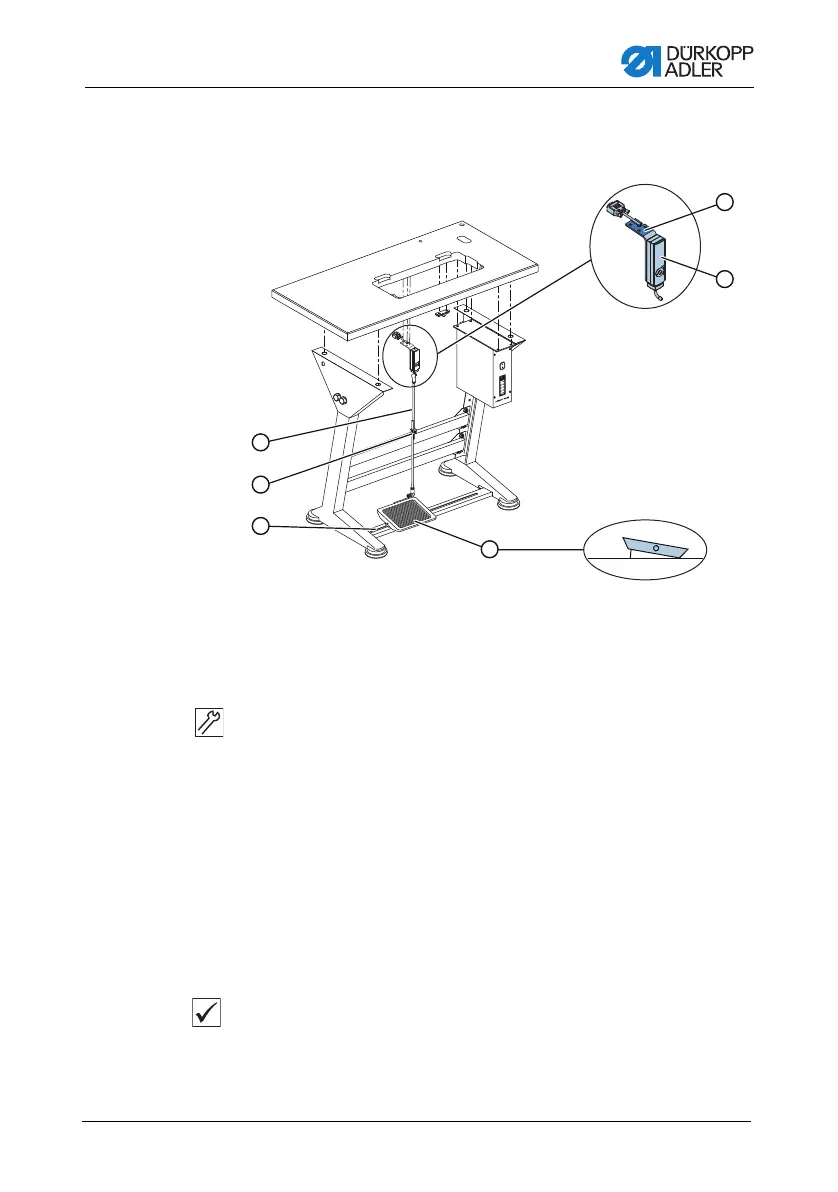

Fig. 36: Fitting the pedal and setpoint device
1. Fit the pedal (4) on the cross strut (3) and align it in such a
way that the middle of the pedal is under the needle. The cross
strut has elongated holes to allow alignment of the pedal.
2. Screw the pedal (4) firmly onto the cross strut (3).
3. Screw the bracket (6) under the table top so that the pedal rod
(1) runs to the pedal (4) at right-angles to the setpoint device
(5).
4. Screw the setpoint device (6) onto the bracket (5).
5. Hang the pedal rod (1) with the ball socket on the setpoint
device (5) and attach to the pedal (4).
6. Pull the pedal rod (1) to the correct length:
Proper setting: 10° inclination with pedal (4) released
7. Tighten the screw (2).
SWG DAC
10°
1
2
3
6
5
4
(1) - Pedal rod
(2) - Screw
(3) - Cross strut
(4) - Pedal
(5) - Setpoint device
(6) - Bracket
