Setup
Operating Instructions 878-M PREMIUM - 02.0 - 02/2018 63
7.12Fitting the control panel

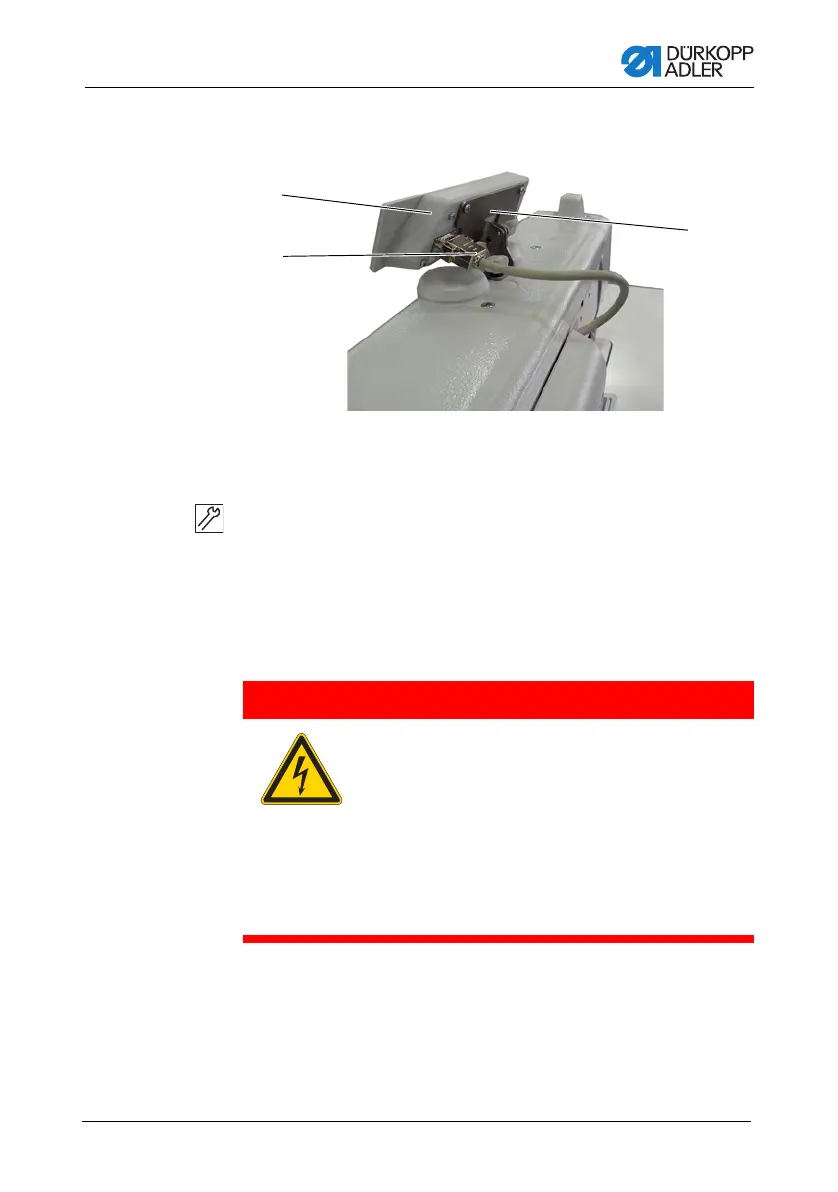

Fig. 41: Fitting the control panel
1. Screw the control panel (1) firmly onto the control panel bracket
(3).
2. Insert the plug (2) of the connecting cable in the socket of the
control panel (1).
7.13Electrical connection
(1) - Control panel
(2) - Connecting cable plug
(3) - Control panel bracket
①
②
③
DANGER
Risk of death from electric shock!
The machine may only be connected by trained
electricians.
Disconnect the power plug before carrying out
work on the electrical equipment.
Make sure the power plug cannot be accidentally
plugged back in.
The voltage on the type plate of the sewing drive
must correspond to the mains voltage.
