DURKOPP ADLER 878-M PREMIUM - Fitting the Oil Extraction Line; Fitting the Tilt Sensor

Setup
Operating Instructions 878-M PREMIUM - 02.0 - 02/2018 61
7.9 Fitting the oil extraction line

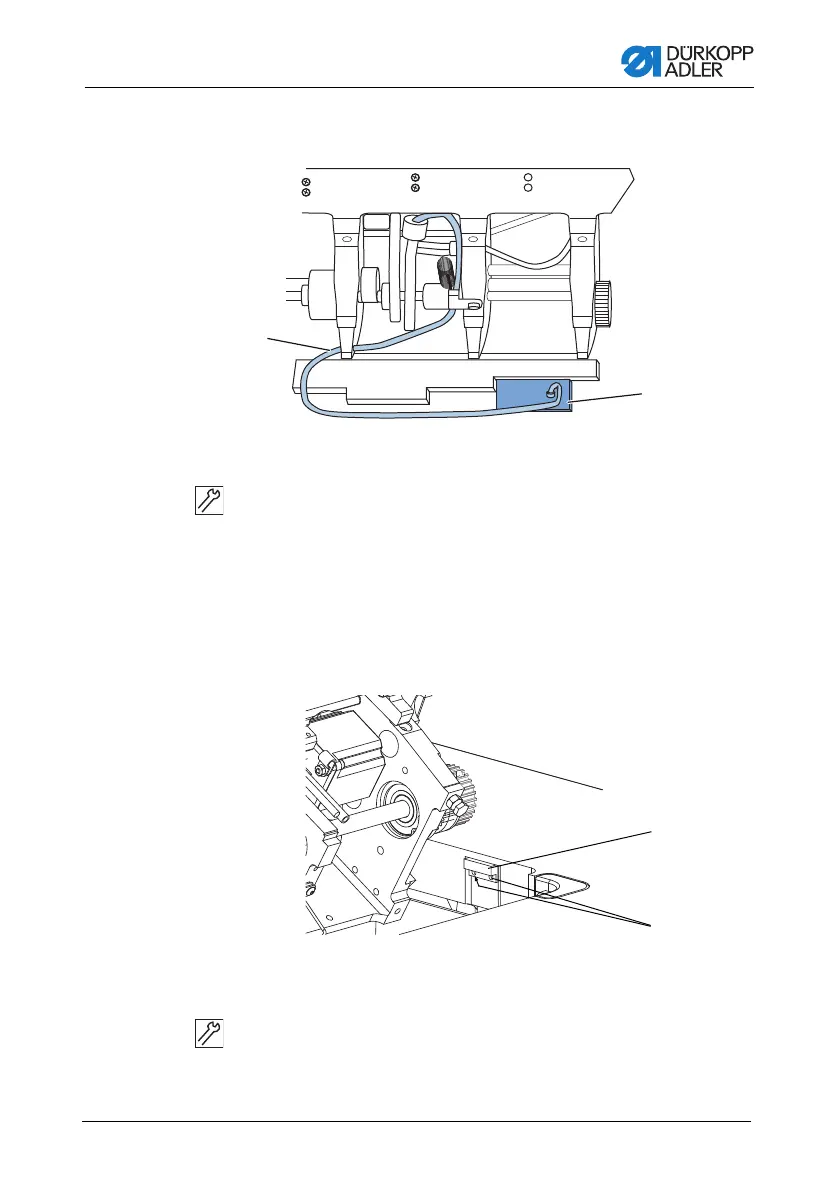

Fig. 38: Fitting the ooil extraction line
1. Tilt the machine head.
2. Screw the filter (2) into the oil sump with the plastic adapter
to the right.
3. Insert the tube of the oil extraction line (1) into the plastic
adapter.
7.10Fitting the tilt sensor
Fig. 39: Fitting the tilt sensor
1. Tilt the machine head.
2. Place the tilt sensor (1) into the groove in the table top.
3. Screw the tilt sensor (1) with two screws (2).
1
2
(1) - Tube of the oil extraction line (2) - Filter
(1) - Tilt sensor (2) - Screws
①
②
