DURKOPP ADLER 878-M PREMIUM - Completing the Table Top

Setup
Operating Instructions 878-M PREMIUM - 02.0 - 02/2018 55
7.4 Completing the table top
The table top is optional.
For drawings that allow you to independently assemble a table
top, refer to the  Appendix, p. 87.

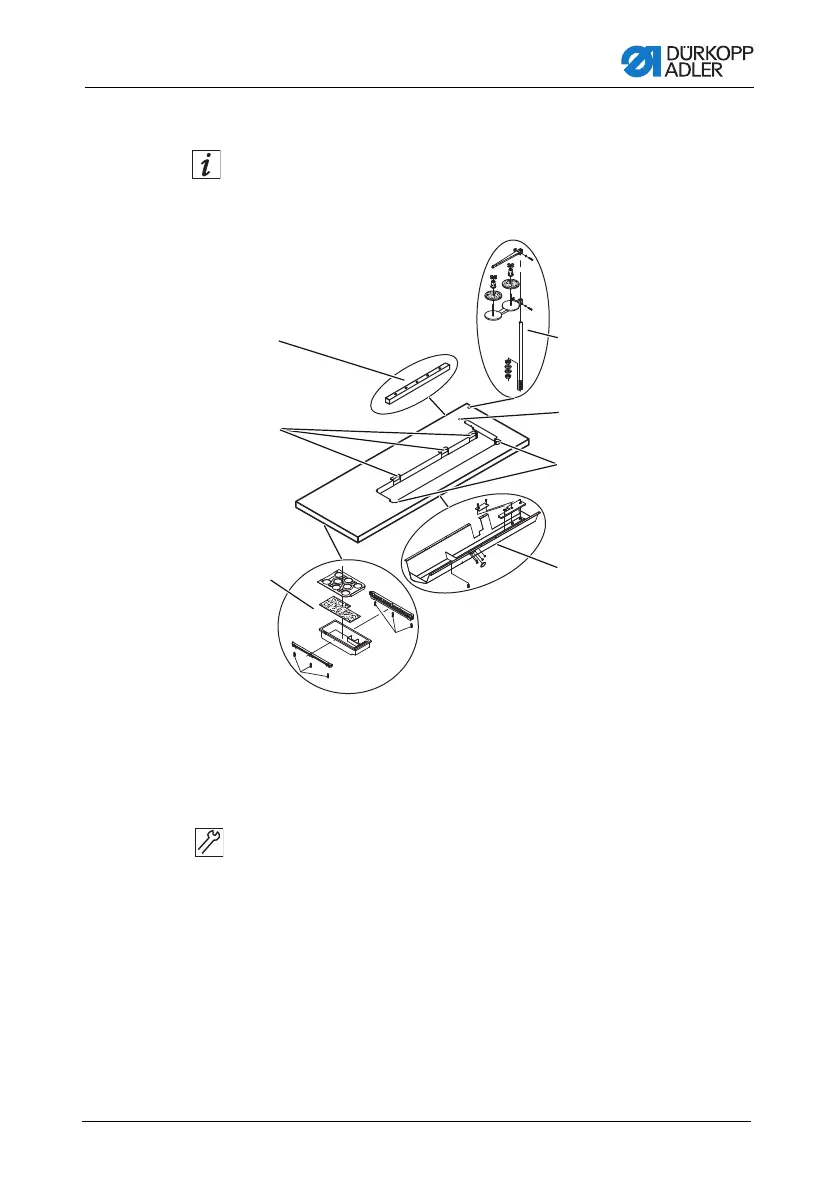

Fig. 32: Completing the table top
1. Screw the drawer (3) with the left-hand bracket to the underside
of the table top.
2. Screw the oil sump (4) in place under the recess for the
machine.
3. Screw the cable duct (1) to the underside of the table top.
4. Insert the reel stand (7) into the hole.
5. Fasten the reel stand (7) with nut and washer.
6. Screw the thread reel holder and the unwinding bracket onto
the reel stand (7) in such a way that they are exactly on top of
each other.
7
6
5
4
3
2
1
(1) - Cable duct
(2) - Recesses for lower
hinge parts
(3) - Drawer
(4) - Oil sump
(5) - Corner protrusions
(6) - Hole
(7) - Reel stand
