Operation
Operating Instructions 878-M PREMIUM - 02.0 - 02/2018 27
5.3.2 Tension plate electronic
Informace
Tension plate electronic is optional equipment.
In all machines the thread from the thread reel is fed through the
thread guide and to the machine via the unwinding bracket.

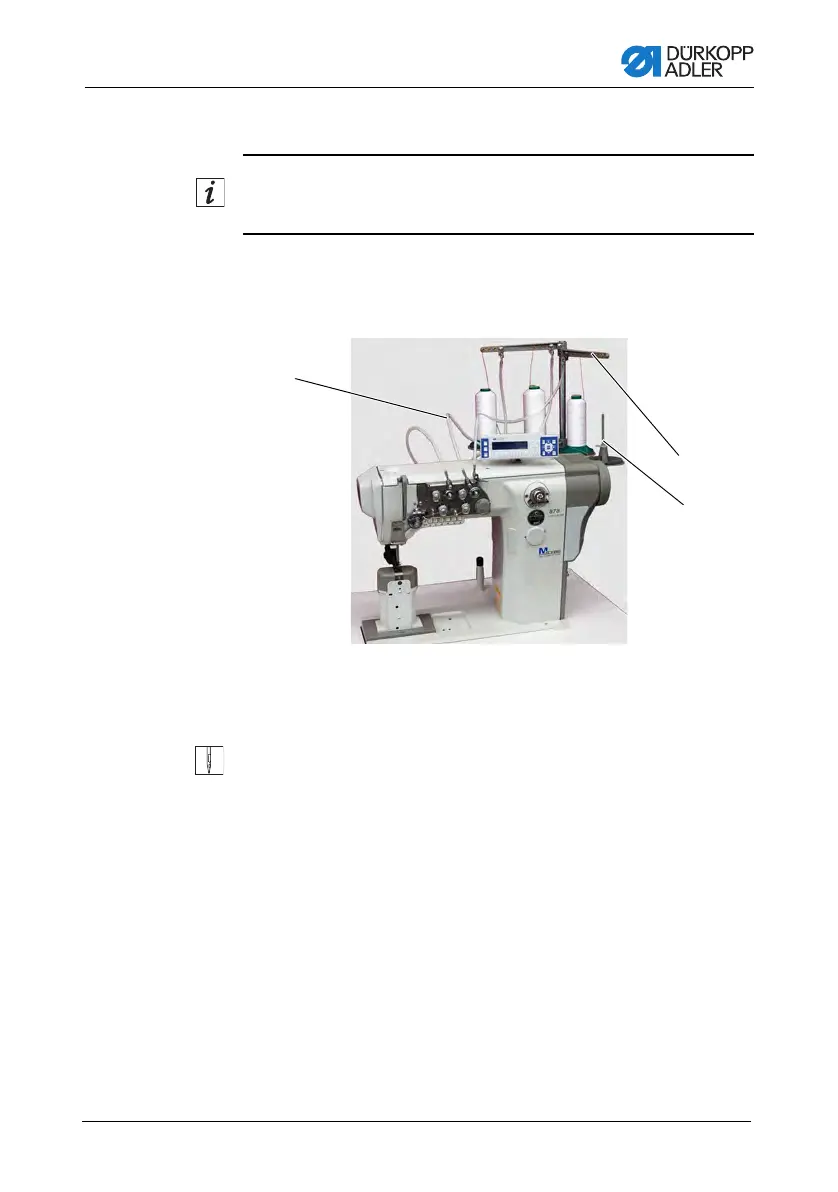

Fig. 8: hread guide on the unwinding bracket and machine arm
1. Fit the thread reel on the reel stand (2).
2. Insert the thread from the rear to the front through the thread
guide on the unwinding bracket (3).
3. Use e.g. a compressed air gun to feed the thread through the
thread guide (1).
(1) - Thread guide
(2) - Reel stand
(3) - Guide on unwinding bracket
①
②
③
