Setup
Operating Instructions 878-M PREMIUM - 02.0 - 02/201860
7.8 Mounting the machine head

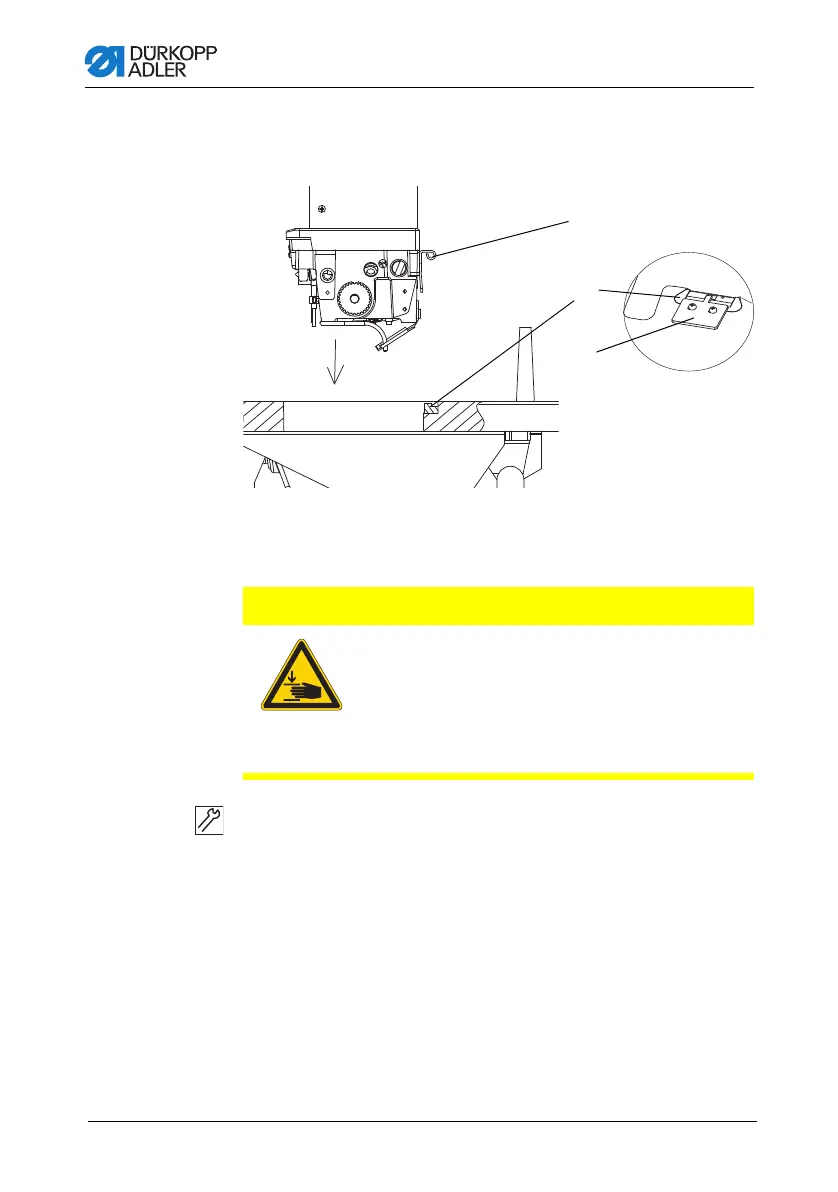

Fig. 37: Mounting the machine head
1. Screw the upper hinge parts (1) onto the machine head.
2. Insert the machine head vertically in the recess in the table top.
3. Insert the upper hinge parts (1) into the rubber inlays (2).
4. Above the right hinge place the locking plate (3) and screw it
with two screws to the table.
CAUTION
Risk of crushing!
The machine head is very heavy.
Take care not to jam your hands when fitting the
machine head.
This especially applies when fitting the upper
hinge parts into the rubber inlays.
(1) - Upper hinge parts
(2) - Rubber inlays
(3) - Locking plate
①
②
③
